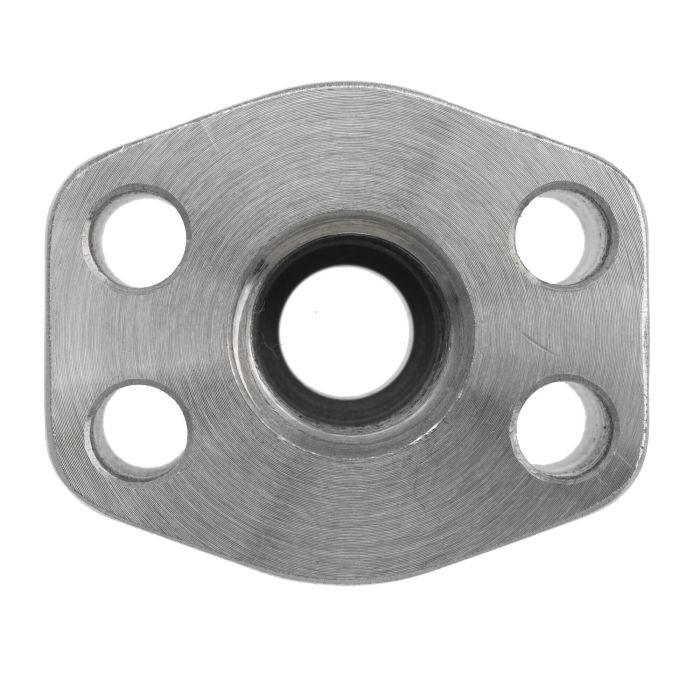

40FP-40ORF FLANGE CODE 61

Description & Features

Designed for 2-1/2 inch hydraulic line connections, the 40FP-40ORF Flange Code 61 is a male O-ring face flange fitting manufactured by Brennan Industries. It accommodates a 2-1/2-8 NPTF thread (Dimension G) and carries a flange size of 2-1/2, making it well-suited for high-pressure hydraulic circuits requiring reliable, leak-resistant face sealing. The O-ring face flange design minimizes the risk of leakage at connection points, a key advantage in demanding fluid power applications.

Dimensional references include a bolt hole drill size of 0.531 inches (K1) with a 1/2-13 thread (K2), and a pilot diameter ranging from 2.995 to 3.005 inches. Part of the Brennan 1927-61 series, this fitting is built to Code 61 flange standards, which are commonly specified for medium-pressure hydraulic systems. The male configuration suits direct mating with compatible Code 61 flange ports and manifolds.

SKU: 1927-61-40-40

Supplier Part Number (MPN): 1927-61-40-40

Specifications

c Dimensions 2 in	Connection Size 1 2-1/2 in	Connection Size 2 2-1/2 in	Connection Type Flanged, FNPT	Connection Type 1 FNPTF	Connection Type 2 Code 61 O-ring Flange	d Dimensions 3-1/2 in	Dimensions 4.63 in L x 4.28 in W x 2 in H	Fitting Type Port Block	h Dimensions 2-1/2 in	j Max Dimensions 3.005 in	j Maximum Dimensions 3.005 in	j Min Dimensions 2.995 in	j Minimum Dimensions 2.995 in	k1 Drill Dimensions 0.531 in	k2 Thread 1/2-13	Material Steel	Material Construction Steel	Series 1927-61 Series	Thread Size 2-1/2-8

Product Questions & Answers (1)

Question by: Keith W on Apr 30, 2025, 5:29 PM

What size hole do I need to drill for the bolts on this flange?

Answer by: Customer Support on May 2, 2025, 6:28 AM

The bolt hole drill size for this flange is 0.531 inches, designed to accommodate a 1/2-13 thread.
