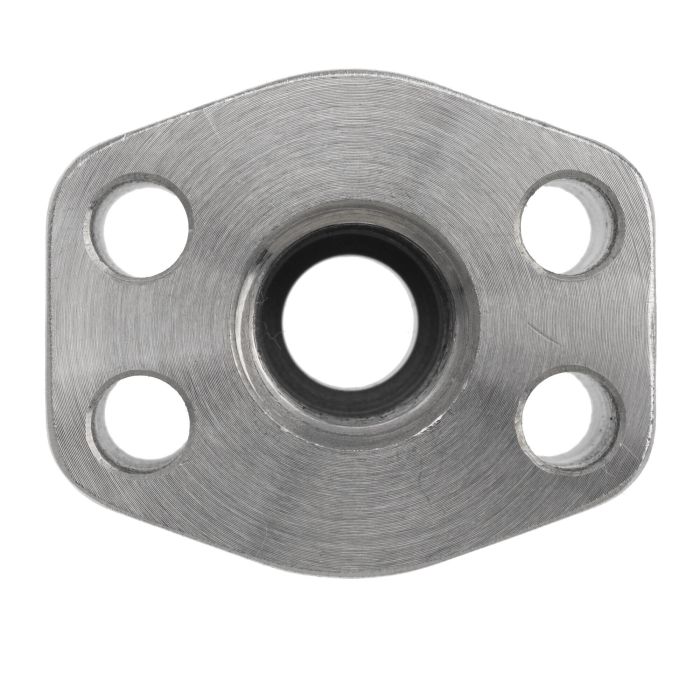

12FP-12ORF FLANGE CODE 62

Description & Features

Designed for robust industrial applications, the 12FP-12ORF Flange Code 62 is a reliable choice for hydraulic systems requiring a secure and efficient connection. This flange is engineered by Brennan Industries, ensuring compatibility with a 3/4-inch pipe size and a 3/4-14 NPTF thread. The product's dimensions are strategically optimized, with a Brennan A measurement of 2.38 inches and a Brennan B of 2.81 inches, enhancing its fit and performance in various setups.

Manufactured with high precision, the 12FP-12ORF supports a flange size of 3/4-inch and features a robust 3/8-16 threaded hole for secure mounting. Its dimensions, including a Brennan D of 2.000 inches and a Brennan E of 1.25 inches, are crafted to meet demanding industry standards. The flange is part of the Brennan Series 1927-62, reflecting a commitment to durability and precision.

SKU: 1927-62-12-12

Supplier Part Number (MPN): 1927-62-12-12

Specifications

c Dimensions 0.937 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Flanged, FNPT	Connection Type 1 FNPTF	Connection Type 2 Code 62 O-ring Flange	d Dimensions 2 in	Dimensions 2.81 in L x 2.38 in W x 1.25 in H	Fitting Type Port Block	h Dimensions 3/4 in	j Max Dimensions 1.255 in	j Maximum Dimensions 1.255 in	j Min Dimensions 1-1/4 in	j Minimum Dimensions 1-1/4 in	k1 Drill Dimensions 0.406 in	k2 Thread 3/8-16	Material Steel	Material Construction Steel	Series 1927-62 Series	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Neal W on Feb 8, 2026, 1:24 PM

Will this flange hold up in a hydraulic system that sees pretty consistent use?

Answer by: Customer Support on Feb 10, 2026, 6:00 AM

Designed for robust industrial applications, the 12FP-12ORF Flange Code 62 should provide a reliable connection in hydraulic systems under heavy use.
