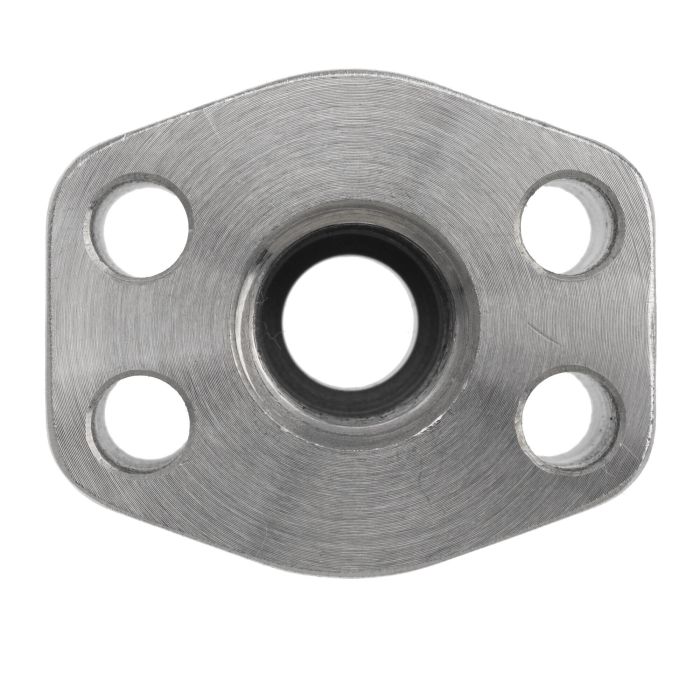

main product photo

BRENNAN 24NPTX62C

Ask A Question

Description & Features

A 1-1/2 inch NPT female-to-flange adapter, the Brennan 24NPTX62C connects 1-1/2-11-1/2 NPTF male threaded lines to SAE Code 62 four-bolt flange ports. Designed for high-pressure hydraulic circuits, Code 62 flanges are commonly specified where Code 61 ratings are insufficient. This male-end adapter carries a flange size of 1-1/2 inches and a pipe size to match, with an overall length of 4.44 inches and a body diameter of 1.437 inches.

Mounting dimensions follow standard Code 62 geometry, with bolt-hole drilling at 0.656 inches and 5/8-11 threaded holes. The J dimension falls between 2.115 and 2.125 inches, and the H dimension is 1.50 inches, details that matter when fitting into tight manifold or valve configurations. Manufactured by Brennan Industries, this fitting is suited for use in hydraulic circuits requiring reliable, leak-resistant flange connections at larger line sizes.

SKU: 1927-62-24-24

Supplier Part Number (MPN): 1927-62-24-24

Specifications

c Dimensions
1.437 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, FNPT
Connection Type 1
FNPTF
Connection Type 2
Code 62 O-ring Flange
d Dimensions
3-1/8 in
Dimensions
4.44 in L x 3.75 in W x 1.75 in H
Fitting Type
Port Block
h Dimensions
1-1/2 in
j Max Dimensions
2-1/8 in
j Maximum Dimensions
2-1/8 in
j Min Dimensions
2.115 in
j Minimum Dimensions
2.115 in
k1 Drill Dimensions
0.656 in
k2 Thread
5/8-11
Material
Steel
Material Construction
Steel
Series
1927-62 Series
Thread Size
1-1/2-11-1/2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Marvin M on Jul 13, 2025, 4:10 PM
Will this fitting work for connecting a 1 1/2 inch pipe to a 4-bolt flange?
Answer by: Customer Support on Jul 15, 2025, 8:57 AM
This Brennan adapter connects a 1-1/2 inch NPT female threaded line to SAE Code 62 four-bolt flange ports, so it will work perfectly for that.
