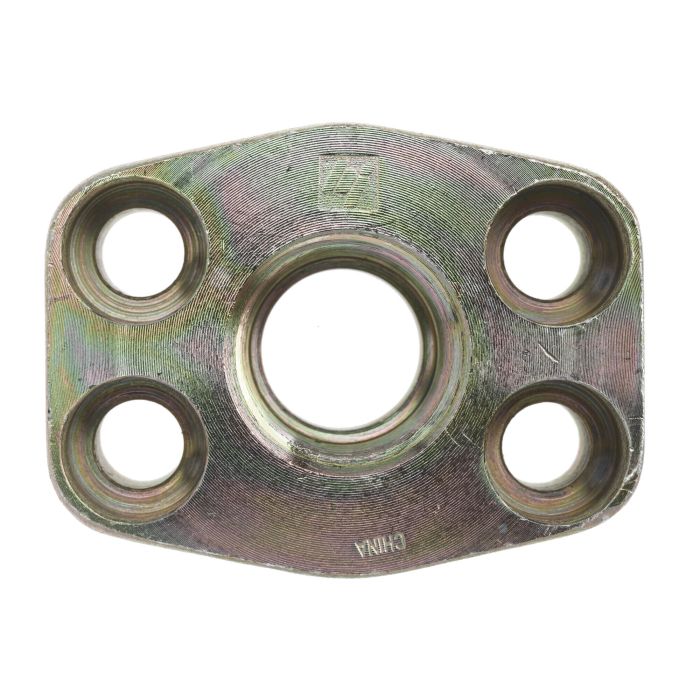

main product photo

12FORB-12ORF FLANGE CODE 61 W/COUNTERSIN

Ask A Question

Description & Features

The 12FORB-12ORF FLANGE CODE 61 W/COUNTERSIN is a Brennan flange designed for Code 61 connections. It features a countersink for secure and reliable assembly. The flange has a 3/4 inch pipe size and a 1 1/16-12 G thread.

This flange is part of the Brennan 1929-61 series. Key dimensions include a 2.060 A dimension, 2.69 B dimension, 0.875 C dimension, 1.875 D dimension and a 1.25 E dimension. The flange size is 3/4 inch with a 0.406 K1 drill size and a 3/8-16 K2 thread.

SKU: 1929-61-12-12

Supplier Part Number (MPN): 1929-61-12-12

Specifications

c Dimensions
7/8 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female ORB, Flanged
Connection Type 1
Female ORB
Connection Type 2
SAE Code 61 O-ring Flange
d Dimensions
1-7/8 in
Dimensions
2.69 in L x 2.06 in W x 1.25 in H
Fitting Type
Port Block
h Dimensions
3/4 in
j Max Dimensions
1.255 in
j Maximum Dimensions
1.255 in
j Min Dimensions
1-1/4 in
j Minimum Dimensions
1-1/4 in
k1 Drill Dimensions
0.406 in
k2 Thread
3/8-16
Material
Steel
Material Construction
Steel
Series
1929-61 Series
Thread Size
1-1/16-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Harold M on Aug 17, 2025, 4:10 PM
trying to swap out a flange and i keep seeing “12FORB-12ORF” on the old one, is this the same Code 61 style?
Answer by: Customer Support on Aug 19, 2025, 1:15 PM
For Code 61 connections, the 12FORB-12ORF is a Brennan flange in the 1929-61 series. It is identified as a Code 61 flange with a countersink, and it is listed with a 3/4 inch flange size and 3/4 inch pipe size.
Question by: Shane Y on Sep 6, 2025, 2:27 PM
What size pipe does this flange fit? Just want to make sure I'm getting the right one for my setup.
Answer by: Customer Support on Sep 8, 2025, 6:47 AM
This flange is designed to fit a 3/4 inch pipe.
Question by: Bobby B on May 18, 2025, 9:04 PM
what's the thread spec on this flange and does the pipe size match up to 3/4 inch line?
Answer by: Customer Support on May 20, 2025, 6:43 AM
The G thread on this one is 1 1/16-12, and yes, the pipe size is 3/4 inch. It's part of Brennan's 1929-61 series built for Code 61 flange connections. The K2 thread for the bolt holes is 3/8-16, with a K1 drill size of 0.406. So if you're working with 3/4 inch hydraulic line and need a Code 61 fit, the thread and size specs line up for that application.
