FLANGE KIT

Ask A Question

Description & Features

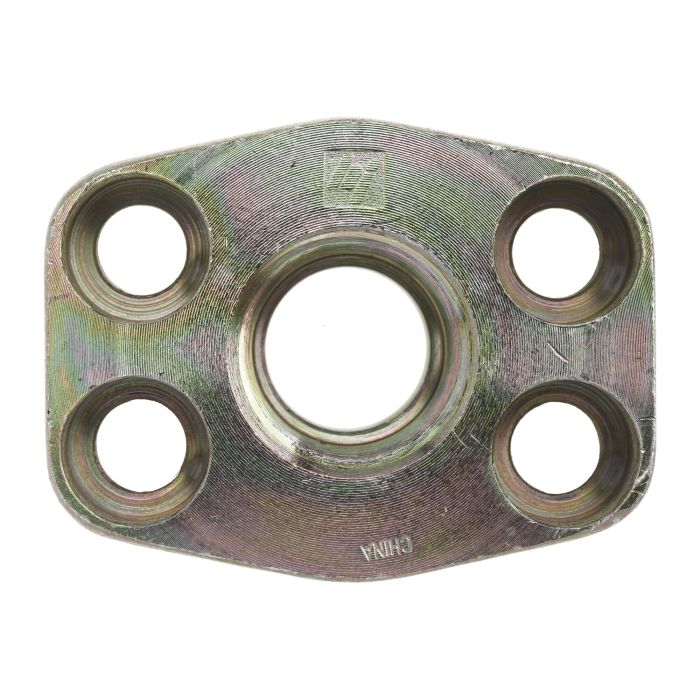

This Code 62 flange kit features a counterseal and a 1 5/16-12 G thread.

The 1929-62 series FLANGE KIT includes dimensions of: A: 2.75, B: 3.19, C: 1.093, D: 2.250, E: 1.50, H: 1.00, J Max: 1.565, J Min: 1.560. Drill K1 is 0.469 and Thd K2 is 7/16-14. This male flange kit has a flange size of 1 and a pipe size of 1.

SKU: 1929-62-16-16

Supplier Part Number (MPN): 1929-62-16-16

Specifications

c Dimensions
1.093 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female ORB, Flanged
Connection Type 1
Female ORB
Connection Type 2
SAE Code 62 O-ring Flange
d Dimensions
2-1/4 in
Dimensions
3.19 in L x 2.75 in W x 1.5 in H
Fitting Type
Port Block
h Dimensions
1 in
j Max Dimensions
1.565 in
j Maximum Dimensions
1.565 in
j Min Dimensions
1.56 in
j Minimum Dimensions
1.56 in
k1 Drill Dimensions
0.469 in
k2 Thread
7/16-14
Material
Steel
Material Construction
Steel
Series
1929-62 Series
Thread Size
1-5/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Stan J on Apr 29, 2025, 12:47 PM
What size drill do I need for this flange kit?
Answer by: Customer Support on May 1, 2025, 10:40 AM
The correct drill size for the K1 drill is 0.469. For the K2 Thd, you'll need a 7/16-14.
