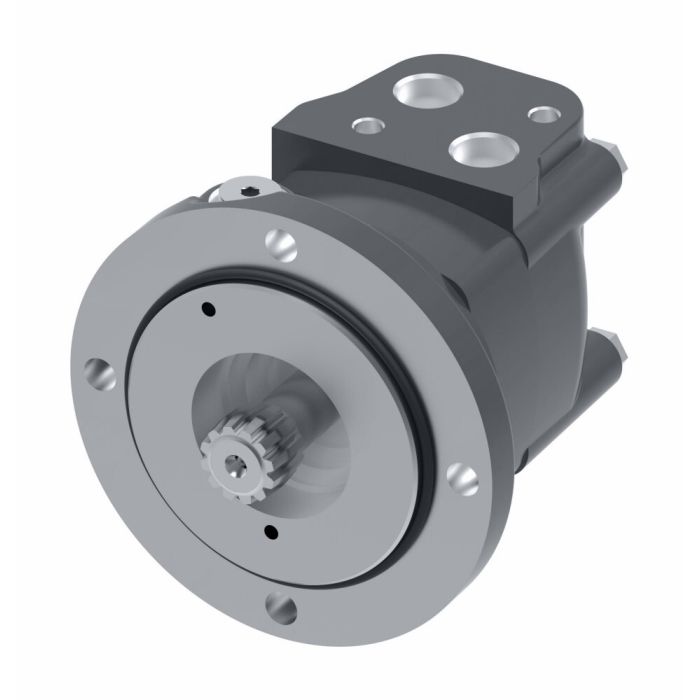

main product photo

CHAR LYNN M22049AC02AA0100010000000AAAAA

Ask A Question

Description & Features

Designed for demanding mobile hydraulic applications, the Char-Lynn 2000 Series Disc Geroler motor delivers reliable low-speed, high-torque performance in skid steer attachments, brush cutters, and mowers. Built from cast iron, the motor is rated at 235 Nm of torque and supports flow rates up to 45 litres per minute, making it well-suited for rotary and drive applications that require consistent output under load.

M22049AC02AA0100010000000AAAAA is a 2-speed motor available in standard, wheel, and bearingless configurations to suit varied installation requirements. The Geroler disc design contributes to a low internal pressure drop, supporting efficient power transmission across the hydraulic circuit. These characteristics make the 2000 Series a practical choice where energy efficiency and configuration flexibility are priorities.

SKU: 193-0010

Supplier Part Number (MPN): 193-0010-001

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
Without Check Valve Function
Design Code
1
Dimensions
10.37 in L x 4.8 in W x 5.39 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring, 7/16-20 UNF-2B SAE O-ring
Frame Size
80
Housing Material
Iron
Motor Function
2-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
2000 Series
Shaft Type
Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Connie W on May 22, 2025, 7:51 AM
Reckon this Char-Lynn motor would be alright for a skid steer attachment, like a brush cutter?
Answer by: Customer Support on May 23, 2025, 1:42 PM
Designed specifically for demanding mobile hydraulic applications like skid steer attachments, brush cutters, and mowers, this Char-Lynn 2000 Series motor delivers reliable low-speed, high-torque performance.
