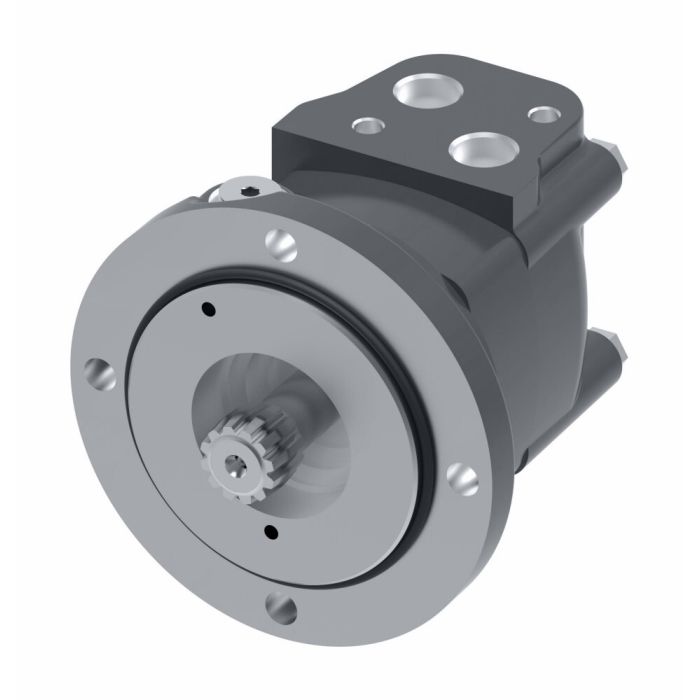

main product photo

Danfoss / Eaton 2K/2SP Motor M22080AF07AA010001000

Ask A Question

Description & Features

This Danfoss / Eaton 2K/2SP Motor is part of the Char-Lynn 2000 Series and features a highly-efficient Geroler motor for energy savings and the lowest pressure drop in the industry. Standard, wheel, and bearingless configurations are available.

Constructed from durable cast iron, this low-speed Gerotor/Geroler motor is suitable for applications such as skid steer attachments, brush cutters, and mowers. It offers a torque rating of 385 newton metres and a flow rate of 70 litres per minute.

SKU: 193-0056

Supplier Part Number (MPN): 193-0056-001

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
Without Check Valve Function
Design Code
1
Dimensions
10.56 in L x 4.8 in W x 5.39 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring, 7/16-20 UNF-2B SAE O-ring
Frame Size
130
Housing Material
Iron
Motor Function
2-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
2000 Series
Shaft Size
7/8 in Dia
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Lynn E on Oct 24, 2025, 8:27 AM
Will this Eaton Char-Lynn motor work good on a hydraulic brush hog I'm building for my skid steer?
Answer by: Customer Support on Oct 26, 2025, 6:59 AM
This Char-Lynn 2000 Series motor is well-suited to skid steer attachments like brush cutters and mowers, according to the description.
