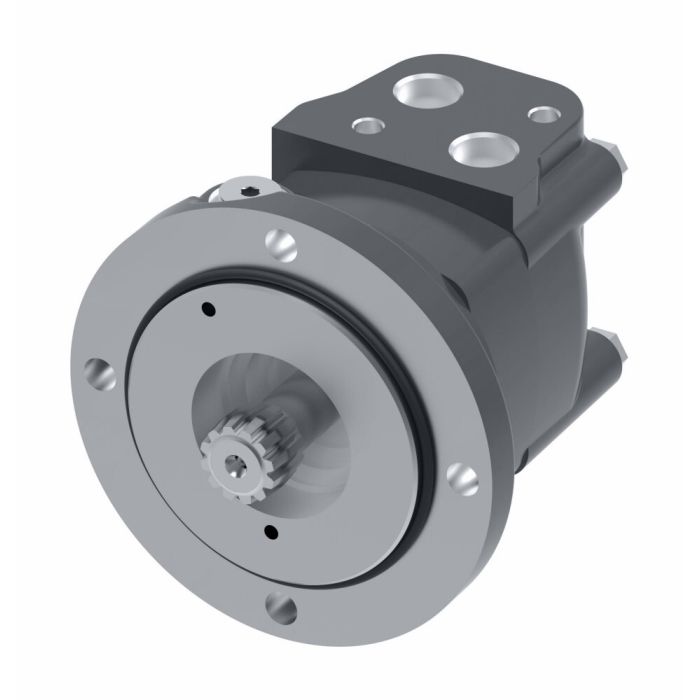

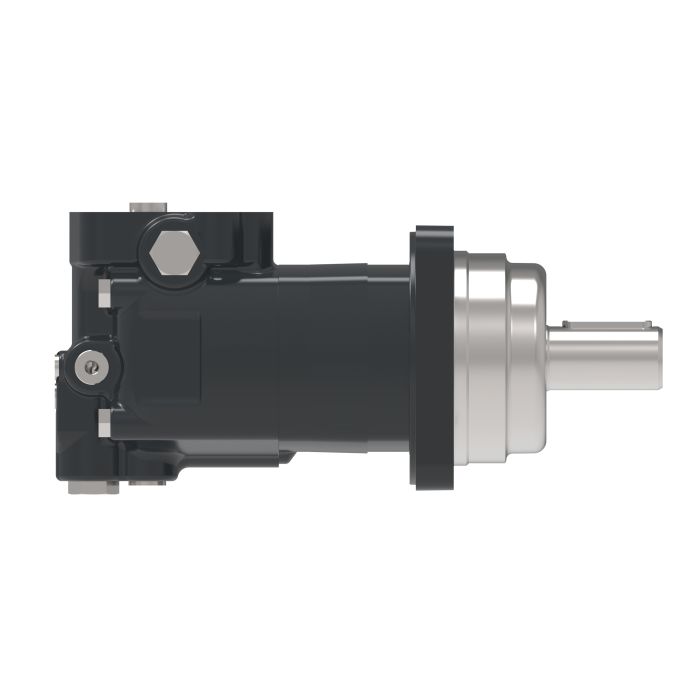

Char Lynn 2K/2SP Motor

Ask A Question

Description & Features

Designed for demanding applications including skid steer attachments, brush cutters, and mowers, the Char-Lynn 2K/2SP Motor is a cast iron, two-speed Disc Geroler unit from the Danfoss Eaton Char-Lynn 2000 Series. It delivers a torque rating of 775 Nm and supports a flow rate of 75 litres per minute, making it well suited to high-load, variable-speed drive requirements in mobile hydraulic equipment.

Available in standard, wheel, or bearingless configurations, this motor offers flexibility across a range of installation types. The Geroler design is noted for its high efficiency and low pressure drop, contributing to reduced energy consumption in hydraulic circuits. Cast iron construction supports durability in field conditions typical of ground-engaging and vegetation-management equipment.

SKU: 193-0226

Supplier Part Number (MPN): 193-0226-001

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
Without Check Valve Function
Design Code
1
Dimensions
9.49 in L x 4.8 in W x 5.51 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring, 7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Motor Function
2-Speed
Mounting Type
4-Bolt Wheel Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
2000 Series
Shaft Type
Tapered Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Kurt M on Dec 17, 2025, 9:52 PM
Reckon this motor will hold up on my brush hog? I'm clearing some pretty thick stuff.
Answer by: Customer Support on Dec 19, 2025, 12:06 PM
Designed for demanding applications like brush cutters, this Char-Lynn motor is built with cast iron for durability in those field conditions.
