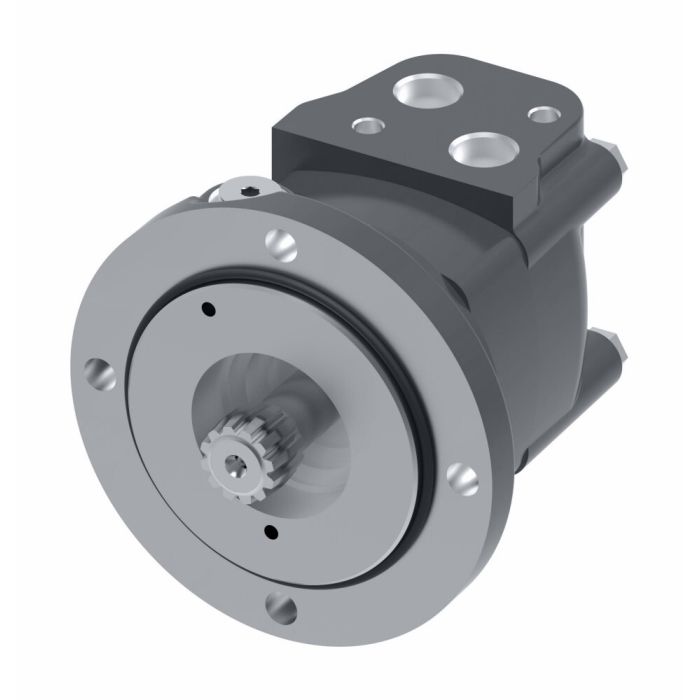

Char Lynn 2K/2SP Motor

Ask A Question

Description & Features

This Char Lynn 2K/2SP Motor is a 2000 Series disc geroler motor suitable for applications like skid steer attachments, brush cutters, and mowers.

It features standard, wheel, or bearingless configurations and offers the lowest pressure drop in the industry. The highly-efficient Geroler motor design provides energy savings and delivers a torque rating of 540 newton metres. This cast iron motor has a flow rate of 75 litres per minute and a product width of 4.8 inches.

SKU: 193-0314

Supplier Part Number (MPN): 193-0314-001

Specifications

Brand
Danfoss
Bearing Type
Bearingless
Check Valve Function
Without Check Valve Function
Design Code
1
Dimensions
7.55 in L x 4.8 in W x 5.39 in H
Drain Port Dimension
9/16-18 UNF-2B SAE O-ring, 7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Motor Function
2-Speed
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Valve Type
Disc

Product Questions & Answers (1)

Question by: Cody G on Jul 21, 2025, 6:06 AM
Can I use this motor on my skid steer for a brush cutter attachment?
Answer by: Customer Support on Jul 22, 2025, 8:09 PM
This Char Lynn 2K/2SP motor is indeed suitable for skid steer attachments, as well as brush cutters and mowers.
