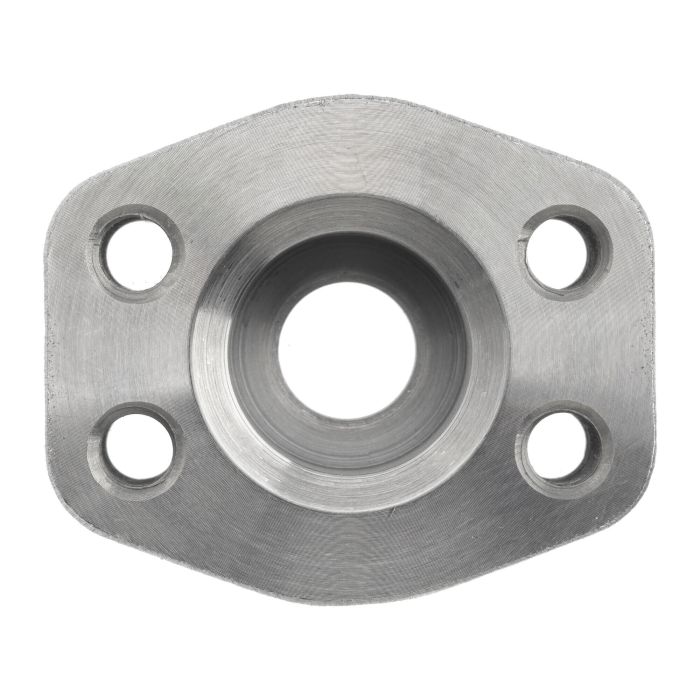

main product photo

24FSWP-24FF FLANGE CODE 61

Ask A Question

Description & Features

This Code 61 flange, part number 24FSWP-24FF, features a 1-1/2 inch flange size. It is part of the 1936-61 series from Brennan Industries.

The 24FSWP-24FF FLANGE CODE 61 has specific dimensions to ensure proper fit and function, including a 3.250 inch Brennan A dimension, 3.688 inch Brennan B dimension, and 1.406 inch Brennan C dimension. Brennan D measures 2.750 inches, Brennan E is 1.19 inches, and Brennan F is 0.750 inches. The Brennan H dimension is 1.50 inches, J Max6 is 2.125 inches, and J Min5 is 2.115 inches. The K1 Drill7 measures 0.531 inches and K2 Thread is 1/2-13.

SKU: 1936-61-24-24

Supplier Part Number (MPN): 1936-61-24-24

Specifications

c Dimensions
1.406 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, NPT
Connection Type 1
NPT
Connection Type 2
Code 61 Flat Face Flanged
d Dimensions
2-3/4 in
Dimensions
3.688 in L x 3.25 in W x 1.19 in H
f Dimensions
3/4 in
Fitting Type
Socket Block
h Dimensions
1-1/2 in
j Max6 Dimensions
2-1/8 in
j Maximum Dimensions
2-1/8 in
j Min5 Dimensions
2.115 in
j Minimum Dimensions
2.115 in
k1 Drill7 Dimensions
0.531 in
k1 Drill Dimensions
0.531 in
Material
Steel
Material Construction
Steel
Series
1936-61 Series
Thread Size
1/2-13

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Janet R on Aug 9, 2025, 8:59 PM
What size is this flange? Just want to make sure it's the right one for my setup.
Answer by: Customer Support on Aug 11, 2025, 1:14 PM
It's a 1-1/2 inch flange, designed as a Code 61 flange.
