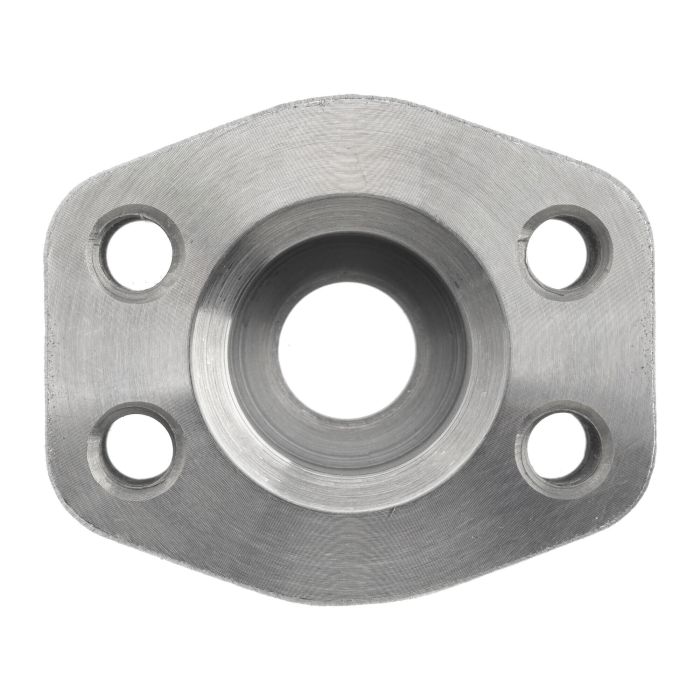

main product photo

BRENNAN 1936-61-40-40

Ask A Question

Description & Features

Designed for Code 61 flange connections, the Brennan 1936-61-40-40 is a male swivel flange adapter sized for 2-1/2" flange and pipe applications. Part of the 1936-61 series, this fitting provides a reliable rotational connection point suited to high-pressure hydraulic assemblies where alignment flexibility is required.

Key dimensional references include an A dimension of 4.281", B of 4.500", and an overall C length of 2.000". The flange face diameter (J) holds a tight tolerance between 2.995" and 3.005", and mounting holes are drilled at 0.531" with 1/2-13 threaded fastener compatibility. The H dimension measures 2.50", with additional envelope dimensions of D at 3.500", E at 1.75", and F at 1.000".

SKU: 1936-61-40-40

Supplier Part Number (MPN): 1936-61-40-40

Specifications

c Dimensions
2 in
Connection Size 1
2-1/2 in
Connection Size 2
2-1/2 in
Connection Type
Flanged, NPT
Connection Type 1
NPT
Connection Type 2
Code 61 Flat Face Flanged
d Dimensions
3-1/2 in
Dimensions
4.5 in L x 4.281 in W x 0.75 in H
f Dimensions
1 in
Fitting Type
Socket Block
h Dimensions
2-1/2 in
j Max6 Dimensions
3.005 in
j Maximum Dimensions
3.005 in
j Min5 Dimensions
2.995 in
j Minimum Dimensions
2.995 in
k1 Drill7 Dimensions
0.531 in
k1 Drill Dimensions
0.531 in
Material
Steel
Material Construction
Steel
Series
1936-61 Series
Thread Size
1/2-13

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Todd T on Jul 3, 2025, 3:03 PM
What size bolts does this flange adapter take? I need to make sure I have the right hardware on hand.
Answer by: Customer Support on Jul 5, 2025, 6:32 AM
This adapter uses 1/2-13 threaded fasteners for mounting, with holes drilled at 0.531".
