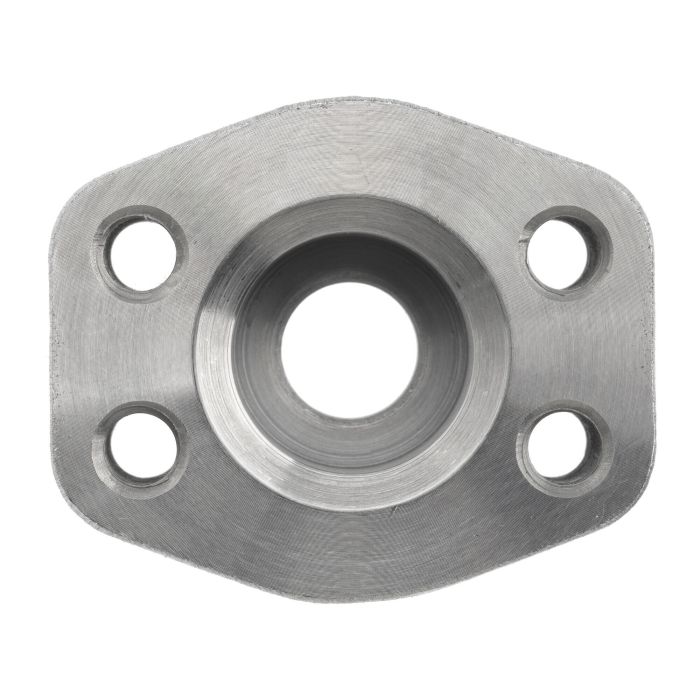

BRENNAN 20FSWP-20FF C62 FLANGE

Ask A Question

Description & Features

The BRENNAN 20FSWP-20FF C62 FLANGE is a robust hydraulic component designed for secure connections in demanding applications. Constructed with precision, this flange features a 1-1/4 inch flange size and a 1-1/4 inch pipe size, ensuring compatibility with corresponding systems.

With dimensions of Brennan A at 3.06, Brennan B at 3.75, Brennan C at 1.250, Brennan D at 2.625, Brennan E at 1.50, and Brennan H at 1.25, the 20FSWP-20FF flange offers precise integration. It also includes K1 Drill at 0.531 and K2 Thread at 1/2-13, providing secure and reliable fastening.

SKU: 1936-62-20-20

Supplier Part Number (MPN): 1936-62-20-20

Specifications

c Dimensions
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, NPT
Connection Type 1
NPT
Connection Type 2
Code 62 Flat Face Flanged
d Dimensions
2-5/8 in
Dimensions
3.75 in L x 3.06 in W x 1.5 in H
f Dimensions
0.69 in
Fitting Type
Socket Block
h Dimensions
1-1/4 in
j Max6 Dimensions
1.755 in
j Maximum Dimensions
1.755 in
j Min5 Dimensions
1-3/4 in
j Minimum Dimensions
1-3/4 in
k1 Drill7 Dimensions
0.531 in
k1 Drill Dimensions
0.531 in
Material
Steel
Material Construction
Steel
Series
1936-62 Series
Thread Size
1/2-13

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Carl M on Oct 13, 2025, 8:19 AM
What size pipe does this flange fit?
Answer by: Customer Support on Oct 14, 2025, 12:54 PM
This Brennan flange fits a 1-1/4 inch pipe size, so it should work if that's what you're needing.
