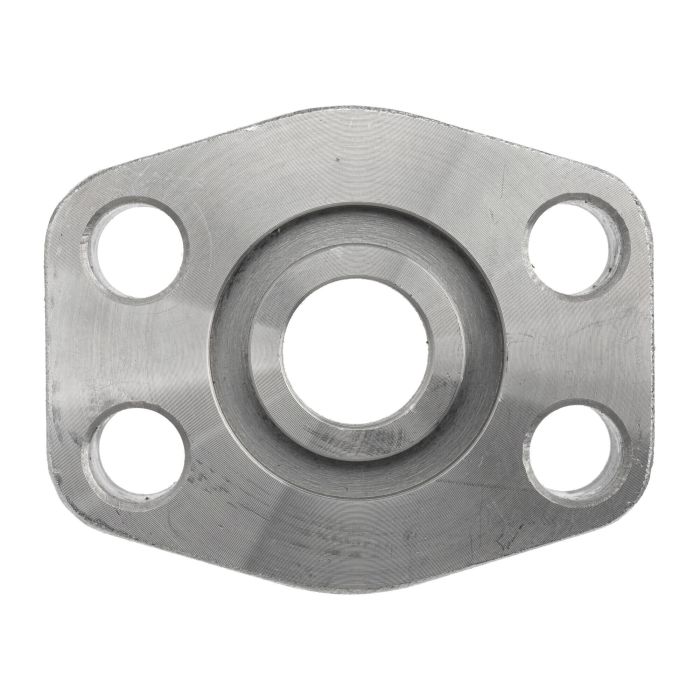

main product photo

24FSWT-24ORF Flange Code 61

Ask A Question

Description & Features

This Code 61 flange, part number 24FSWT-24ORF, features a 1-1/2 inch flange size and a 1-1/2 inch pipe size. Constructed by Brennan Industries, the 24FSWT-24ORF Flange Code 61 is part of the 1937-61 series.

Key dimensions include a Brennan A measurement of 3.25, a B measurement of 3.69, and a C measurement of 1.406. The D measurement is 2.750 and the E measurement is 1.190. This male flange also has an F measurement of 0.750 and an H measurement of 1.38. Drill size K1 is 0.531, while the K2 thread is 1/2-13.

SKU: 1937-61-24-24

Supplier Part Number (MPN): 1937-61-24-24

Specifications

c Dimensions
1.406 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Socket Weld
Connection Type 1
Socket Weld Tube
Connection Type 2
Code 61 O-ring Flange
d Dimensions
2-3/4 in
Dimensions
3.69 in L x 3.25 in W x 1.19 in H
f Dimensions
3/4 in
Fitting Type
Socket Block
h Dimensions
1.38 in
j Max6 Dimensions
2-1/8 in
j Maximum Dimensions
2-1/8 in
j Min5 Dimensions
2.115 in
j Minimum Dimensions
2.115 in
k1 Drill7 Dimensions
0.531 in
k1 Drill Dimensions
0.531 in
Material
Steel
Material Construction
Steel
Series
1937-61 Series
Thread Size
1/2-13

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Keith C on Aug 20, 2025, 1:19 PM
So this is a 1 1/2 inch flange and pipe size, right? Just wanna make sure I'm readin' it right.
Answer by: Customer Support on Aug 22, 2025, 6:38 AM
That's correct. This Code 61 flange, part number 24FSWT-24ORF, has both a 1-1/2 inch flange size and a 1-1/2 inch pipe size.
