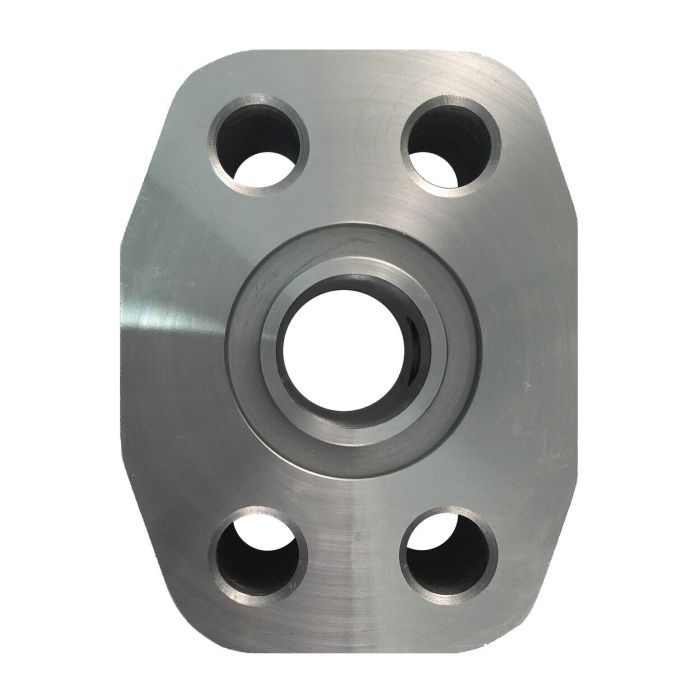

main product photo

ORF SPACER/PORT

Ask A Question

Description & Features

This ORF SPACER/PORT, also known as a Flange Spacer with Side Gage Ports CD62, is suitable for various hydraulic applications. It has a Brennan A dimension of 2.750, a Brennan B dimension of 3.190, and a Brennan C dimension of 1.093.

Additional dimensions include a Brennan D of 2.250, a Brennan E of 1.500, and a Brennan H of 1.000. The flange size is 1, the Brennan J dimension is 1.560, and the Brennan K Drill8 measurement is 0.492. This spacer is part of the Brennan Series 1940-62.

SKU: 1940-62-16

Supplier Part Number (MPN): 1940-62-16

Specifications

Brand
BRENNAN
c Dimensions
1.093 in
Connection Size 1
1 in
Connection Type
Flanged
Connection Type 1
Code 62 Flange
d Dimensions
2-1/4 in
Dimensions
2.75 in L x 2.313 in W x 0.875 in H
e Dimensions
1-1/2 in
Fitting Type
Flange Spacer
Flange Size
1 in THK
h Dimensions
1 in
j Dimensions
1.56 in
k Drill Dimensions
0.492 in
Material
Steel
Material Construction
Steel
Series
1940-62 Series

Product Questions & Answers (1)

Question by: Frank B on Apr 7, 2025, 8:03 PM
Reckon this'll fit where a CD62 flange spacer with side gage ports used to be?
Answer by: Customer Support on Apr 9, 2025, 8:17 AM
You can figure that out by comparing the dimensions. The A dimension is 2.750, B is 3.190, C is 1.093, D is 2.250, E is 1.500, H is 1.000, J is 1.560, and the flange size is 1. Finally, the K Drill8 measurement comes in at 0.492.
