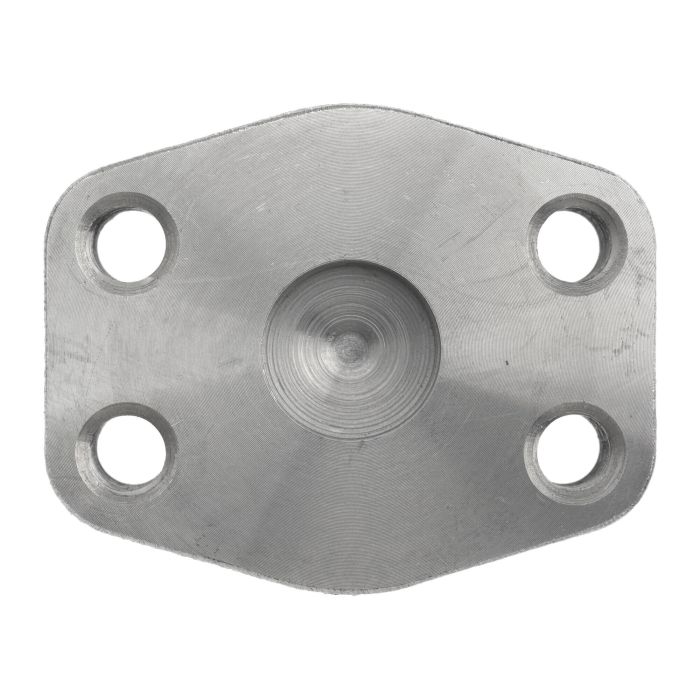

main product photo

BRENNAN FLAT FACE 61 FLANGE PLUG

Ask A Question

Description & Features

The Brennan Flat Face 61 Flange Plug is a highly dependable component from Brennan Industries Inc.

Designed for robust industrial applications this flange plug features a flat face design. It offers consistent performance for various sectors requiring reliable connections.

This flange plug is part of the 1943-61 series and has a flange size of 1. The J Max and J Min dimensions are 1.565 and 1.560 respectively ensuring precise fitting in your assemblies.

The K1 Drill dimension is 0.406 while the K2 Thread specification is 3/8-16. These attributes make the plug suitable for demanding technical environments.

Supplier Part Number: 1943-61-16

Specifications

Brand
BRENNAN
c Dimensions
1.031 in
Connection Size 1
1 in
Connection Type
Flanged
Connection Type 1
Code 61 Flat Face Flanged
d Dimensions
2.063 in
Dimensions
2.75 in L x 2.313 in W x 0.88 in H
Fitting Type
Plug Block
k2 Thread
3/8-16
Material
Steel
Material Construction
Steel
Series
1943-61 Series

Product Questions & Answers (2)

Question by: Dean G on Sep 13, 2025, 7:18 AM
got a flange port that takes a size 1, is this plug the right match or am I off a size
Answer by: Customer Support on Sep 14, 2025, 6:06 PM
The key callout is the flange size. This plug is a 61 flange plug with a flange size of 1, and it is in Brennan’s 1943-61 series.
Question by: Rick R on Oct 18, 2025, 6:15 AM
flange size is listed as 1 inch on this plug, does that mean the J Max dimension of 1.565 is what i'd be matching up against my current assembly?
Answer by: Customer Support on Oct 19, 2025, 6:49 AM
The J Max and J Min dimensions, 1.565 and 1.560 respectively, represent the tolerance range for the mating surface fit. When checking your assembly, you want your bore or receiving feature to fall within that range for a proper connection. The flange size of 1 refers to the nominal classification within the 1943-61 series, so both values work together when confirming fitment.
