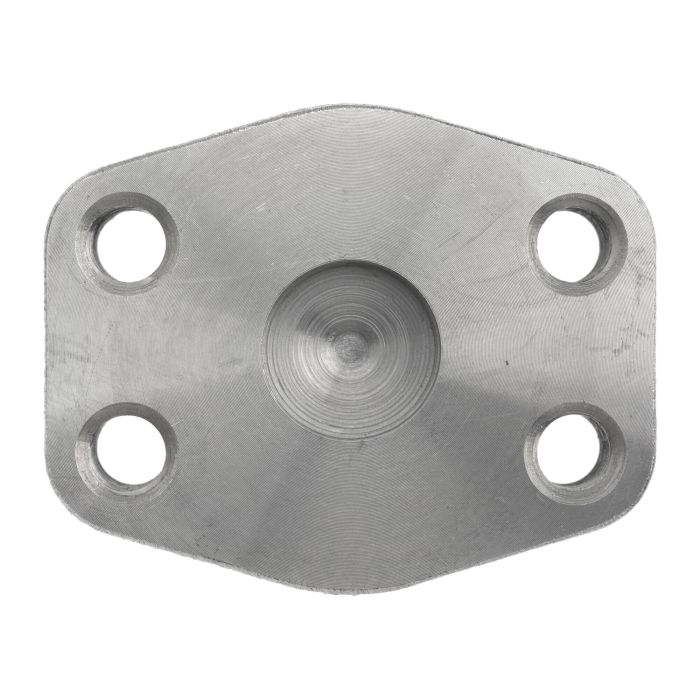

main product photo

BRENNAN FLAT FACE 61 FLANGE PLUG

Ask A Question

Description & Features

Designed for use with SAE Code 61 four-bolt flange connections, the Brennan Flat Face 61 Flange Plug provides a reliable method of capping or blanking a 1-1/2 inch flange port in hydraulic systems. The flat face sealing surface mates directly with the flange face to prevent fluid loss or contamination ingress when a port is inactive or being serviced.

This plug is manufactured by Brennan Industries and carries the 1943-61 series designation. Key dimensions include an A dimension of 3.250 inches, a B dimension of 3.688 inches, and a D dimension of 2.750 inches. Mounting holes are drilled to 0.531 inches (K1) and tapped to a 1/2-13 thread (K2), with a bolt circle diameter ranging from 2.115 to 2.125 inches. The C dimension measures 1.406 inches and the E dimension 1.190 inches.

SKU: 1943-61-24

Supplier Part Number (MPN): 1943-61-24

Specifications

Brand
BRENNAN
c Dimensions
1.406 in
Connection Size 1
1-1/2 in
Connection Type
Flanged
Connection Type 1
Code 61 Flat Face Flanged
d Dimensions
2-3/4 in
Dimensions
3.688 in L x 3.25 in W x 1.19 in H
Fitting Type
Plug Block
k2 Thread
1/2-13
Material
Steel
Material Construction
Steel
Series
1943-61 Series

Product Questions & Answers (1)

Question by: Rusty Y on Jun 25, 2025, 6:24 PM
Reckon this plug will fit my 1-1/2 inch flange? Just wanna make sure before I order.
Answer by: Customer Support on Jun 27, 2025, 3:01 PM
This Brennan flat face flange plug is specifically made for SAE Code 61 four-bolt flange connections, so it should fit your 1-1/2 inch flange port.
