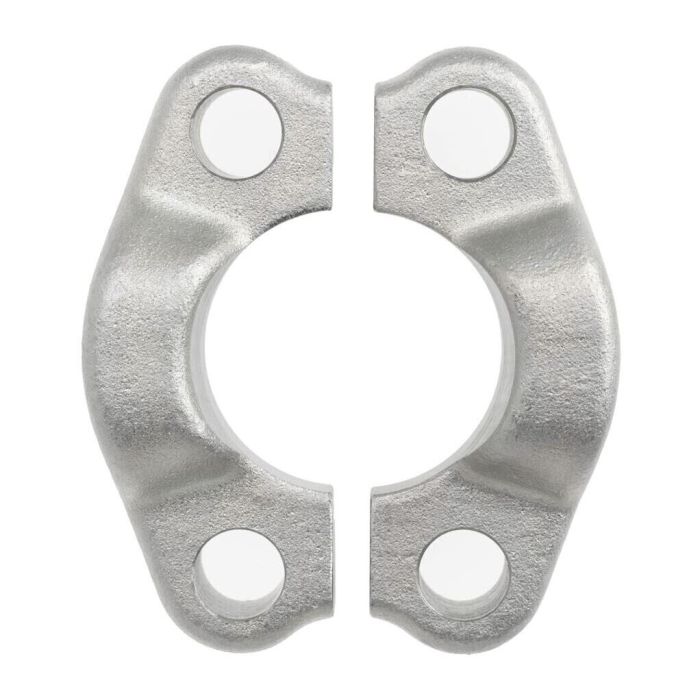

main product photo

BRENNNAN CODE 62 SPLIT FLANGE (2) HALVES

Ask A Question

Description & Features

Designed for 1-inch Code 62 high-pressure hydraulic flange connections, the Brennan Code 62 Split Flange (2) Halves provides a reliable two-piece clamping solution for securing flanged ports in demanding hydraulic systems. The split-flange design simplifies installation and removal around fixed components without requiring full disassembly of adjacent fittings.

Manufactured by Brennan Industries under Series 1952, this flange half set is sized with a bolt circle diameter of 2.25 inches and an overall width of 3.19 inches. Bolt hole diameter measures 0.47 inches with a hole center offset of 0.36 inches. The companion flange kit for this size is Brennan part 1902-16. All dimensional values are available in the specification table on this page.

SKU: 1952-16

Supplier Part Number (MPN): 1952-16

Specifications

Brand
BRENNAN
a 030 Dimensions
1.33 in
b 030 Dimensions
3.19 in
Connection Size 1
1 in
Connection Type
Flanged
Connection Type 1
Code 62 Flange
d 010 Dimensions
2-1/4 in
Dimensions
3.19 in L x 1.33 in W x 1.31 in H
e 030 Dimensions
1.31 in
f 016 Dimensions
0.94 in
Fitting Type
Flange
Flange Size
1 in THK
g 010 Dimensions
1.91 in
h 010 Dimensions
1.53 in
j 005 Dimensions
0.36 in
k 005 Dimensions
0.47 in
Material
Steel
Material Construction
Steel
Series
1952 Series

Similar Products

Model Number Connection Size 1 Price Action
BRENNAN CODE 62 SPLIT FLANGE (2) HALVES

1952-20

1-1/4 in

Product Questions & Answers (1)

Question by: Rusty S on Sep 16, 2025, 2:31 PM
What size bolts do I need for this split flange?
Answer by: Customer Support on Sep 18, 2025, 6:00 AM
You'll need bolts that fit a 0.47-inch diameter hole.
