Description & Features

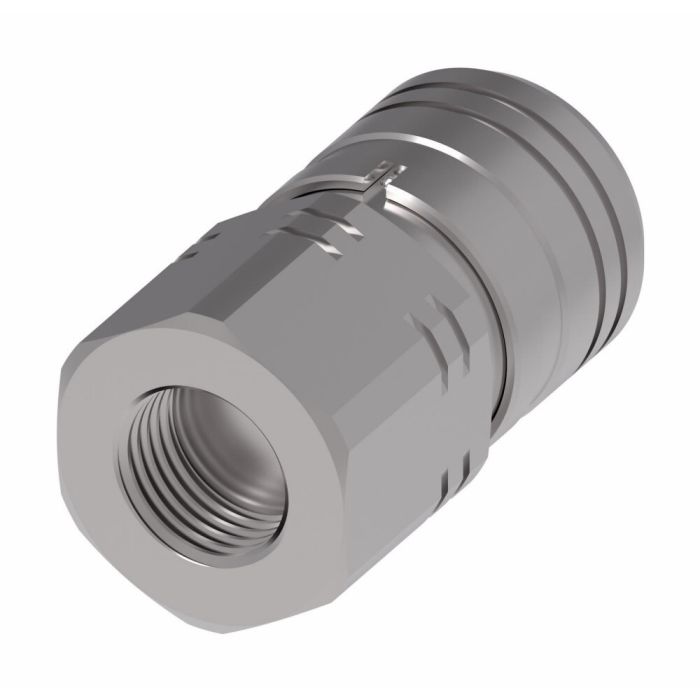

This Eaton Aeroquip Socket is a female half quick disconnect coupling designed for hydraulic and fluid transfer applications. Constructed from carbon steel with NBR+AU seals, it features a sleeve lock safety mechanism and a flat face internal connection.

This coupling is suitable for use in construction, agriculture, utility, and on-highway vehicles, as well as stationary in-plant hydraulic systems. The push-to-connect design allows for quick connection and disconnection without special tools. It exceeds ISO 16028 operating pressures and is REACH and RoHS compliant, meeting European Pressure Equipment Directive (PED) 97/23 EC Article 3.3 standards. The female NPT end size is 0.75 inches, and it offers a flow rate of 30.1 gallons per minute, with a torque rating of 48.3 lb/ft. It is also interchangeable with HTMA couplings in the 3/8” size. Minimum working temperature is -13 degrees Fahrenheit.

SKU: 19FFS75

Supplier Part Number (MPN): 19FFS75

Specifications

Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
Certifications
ISO 16028
Compliances
REACH|RoHS Compliant|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
NPT
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
30.1 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Flat Face
Item Type
Female Half
Language
English
Minimum Working Temperature
-13
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.82
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Sub Brand
Hansen
Supplier Part Number
19FFS75
Torque Rating
48.3 lb/ft
Torque Rating
48.3 lb/ft
Valve Type
2 way
Product Weight
1.75 lbs

Related Documents

Product Questions & Answers (3)

Question by: Judy B on Jan 14, 2026, 3:59 PM
Will this Eaton coupling work with other brands that meet the ISO 16028 standard?
Answer by: Customer Support on Jan 16, 2026, 6:32 AM
This socket exceeds ISO 16028 operating pressures, so it should interchange just fine with other HTMA couplings in the 3/8” size.
Question by: Lyle C on Apr 20, 2025, 1:30 PM
does this socket work with NPT fittings or do I need an adapter to hook it up
Answer by: Customer Support on Apr 22, 2025, 6:01 AM
The port on the back end of this socket is 3/4 inch NPT, so it threads straight into standard NPT fittings without any adapter needed. The connect side is push-to-connect flat face, which mates up and locks with a sleeve lock mechanism. No special tools required to make or break the connection.
Question by: Cindy E on Oct 1, 2025, 10:46 AM
got a 3/8 flat face setup on a skid steer, is this socket gonna swap in with those HTMA style couplers
Answer by: Customer Support on Oct 3, 2025, 6:38 AM
For 3/8 inch size flat face connections, this FF Series female half is listed as interchangeable with HTMA couplings. It is a flat face, push to connect socket with a sleeve lock.
