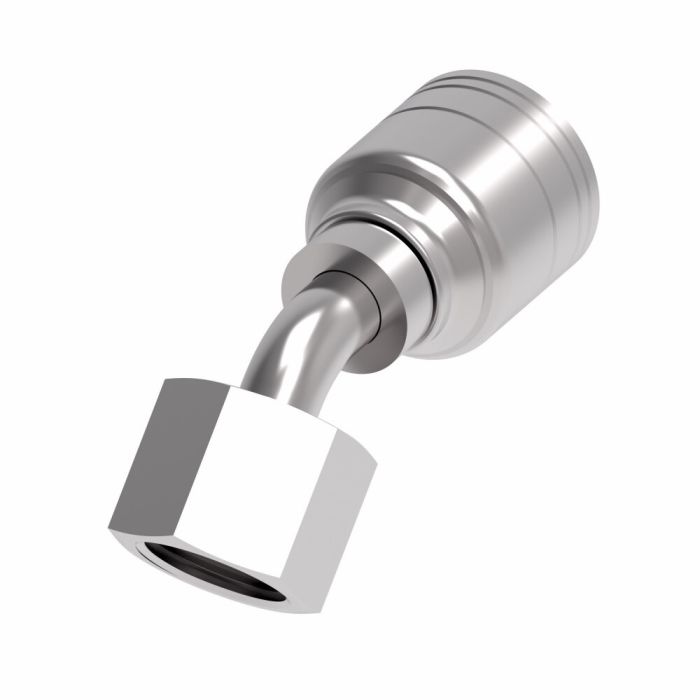

Aeroquip Global Metric Fitting

Ask A Question

Description & Features

Designed for general-purpose low and medium-pressure hydraulic applications, the Aeroquip Global Metric Fitting is an essential component for ensuring reliable performance in demanding environments. Its Dura-Kote plating offers superior corrosion resistance, extending the life of your hydraulic systems even in challenging conditions. The fitting's innovative design enhances performance and maximizes uptime, making it a dependable choice for use with H277 or H435 hoses where shock hazards exist.

Crafted from durable carbon steel, this fitting features a female Metric end and is compatible with line, hose, or tube connections. It incorporates a 45˚ elbow, providing flexibility in routing. With a torque rating of 55-70 lb/ft and a hose dash size of -10, it is engineered for robust operation. This fitting is part of the Eaton Aeroquip brand, known for its reliability and quality in the hydraulic industry.

SKU: 1A10DSA6

Supplier Part Number (MPN): 1A10DSA6

Alternate Part Numbers: C1FV47

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.71 in
Compatible Hose ID
0.38 in
Compatible Tube OD
0.63 in
Connection Size 1
3/8 in
Connection Size 2
5/8 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS 24 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1.71 in
Dimension Standards
SAE J1176
Dimensions
3.24 in L x 1.07 in W x 1.85 in H
Drop Dimensions
0.79 in
End Connection Torque
52 to 66 lb-ft
End Gender 1
Female
End Size 1
10
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.06 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M22x1.5
Torque Rating
55 to 70 lb-ft
Tube Outside Diameter 1
5/8 in

Product Questions & Answers (2)

Question by: Bobby E on Jan 11, 2026, 2:40 PM
got a -10 hose and need a metric female swivel 45 elbow, is that what this 1A10DSA6 is?
Answer by: Customer Support on Jan 13, 2026, 1:57 PM
For a -10 hose, this fitting matches that dash size and it is a DKO female swivel heavy duty 45 degree elbow in the Aeroquip 1A Series crimp style, with a metric female end.
Question by: Harvey B on Jul 19, 2025, 3:36 PM
What kind of pressure is this fitting good for?
Answer by: Customer Support on Jul 21, 2025, 6:54 AM
It's designed for general purpose low and medium pressure hydraulic applications.
