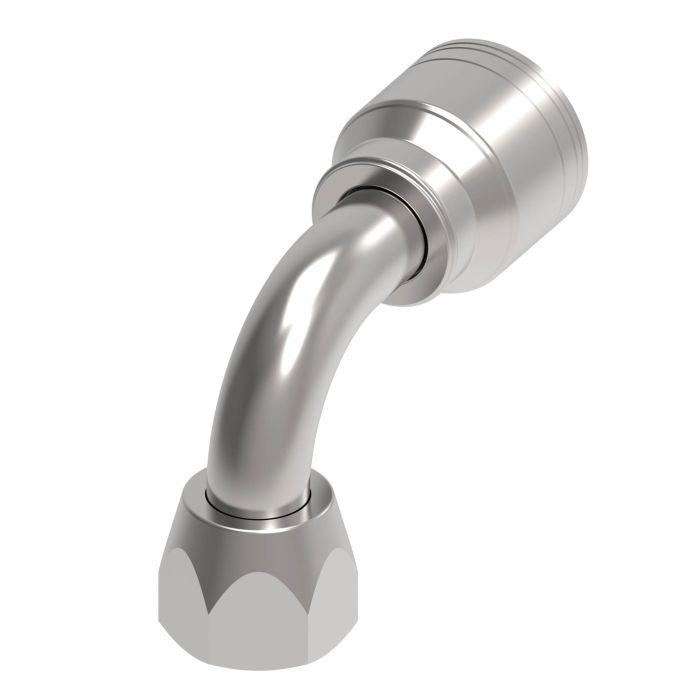

main product photo

AEROQUIP FTG

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, this carbon steel fitting features a Female JIC/SAE 37° swivel end with a 90° elbow configuration, sized for -12 hose dash size. The swivel design allows for flexible positioning during assembly, reducing stress on connected hose ends.

The Aeroquip FTG is built with Dura-Kote plating, providing strong resistance to corrosion in demanding service environments. Engineered as part of a system-matched crimp fitting series, it is designed to extend hose assembly service life and support consistent uptime in hydraulic circuits. Where shock hazards are a concern, Aeroquip H277 or H435 fittings are recommended as alternatives.

SKU: 1A12FJB12

Supplier Part Number (MPN): 1A12FJB12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.42 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.17 in
Dimension Standards
SAE J1176
Dimensions
3.98 in L x 1.56 in W x 3.18 in H
Drop Dimensions
1.82 in
End Connection Torque
79 to 87 lb-ft
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
1.26 in
Hose Dash Size
12
Inside Diameter
0.58 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Cheryl E on Jan 16, 2026, 11:46 AM
How well does this fitting hold up to rust? I'm using it outdoors on some farm equipment.
Answer by: Customer Support on Jan 18, 2026, 9:20 AM
Dura-Kote plating gives this fitting good corrosion resistance, so it should hold up well in outdoor environments.
