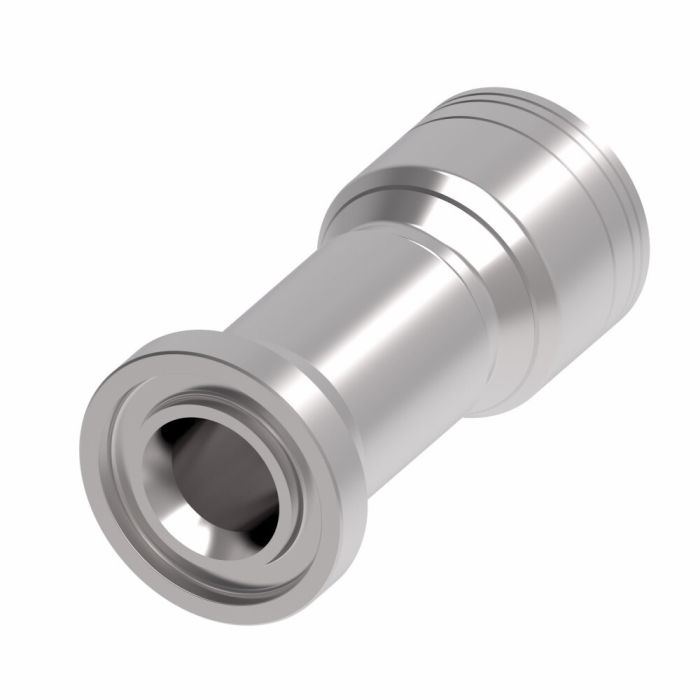

Aeroquip R2 MM+ Fitting - 61-Flange

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, the Aeroquip R2 MM+ Fitting - 61-Flange is a carbon steel crimp hose fitting with a flanged end type on one side and a line/hose/tube end on the other, sized for -10 hose dash. Where shock hazards are a concern, Eaton Aeroquip recommends pairing with H277 or H435 hose assemblies.

Manufactured by Eaton Aeroquip in Van Wert, Ohio, this fitting features Dura-Kote plating for corrosion resistance and is part of the 1A Series SAE Code 61 crimp fitting family, a system-engineered line built to extend hose assembly service life and support consistent uptime in demanding hydraulic circuits.

SKU: 1A12FL10

Supplier Part Number (MPN): 1A12FL10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.13 in
Compatible Hose ID
0.62 in
Compatible Tube OD
1/2 in
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
2.1 in
Dimension Standards
SAE J1176
Dimensions
3.26 in L x 1.5 in W x 1.5 in H
End Size 1
12
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
10
Inside Diameter
1/2 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Tube Outside Diameter 1
1/2 in

Product Questions & Answers (3)

Question by: Rick K on Feb 19, 2026, 8:23 PM
does this fitting work with R2 hose or is it only for certain hose types
Answer by: Customer Support on Feb 21, 2026, 6:12 AM
The 1A12FL10 is part of Aeroquip's 1A Series crimp hose fittings built around the R2 MM+ system, so it pairs with R2 hose in a -10 dash size. The flanged end uses SAE Code 61 geometry, and the hose end is designed for standard line and hose connections. For general purpose low and medium pressure hydraulic systems, this setup is a solid match. If your application involves shock hazards, the product data specifically calls out H277 or H435 as the better choice for those conditions.
Question by: Gene A on Feb 19, 2026, 4:31 PM
What kind of hydraulic work is this fitting best suited for? I'm not dealing with anything too extreme.
Answer by: Customer Support on Feb 21, 2026, 12:11 PM
Generally speaking, this Aeroquip fitting is for general purpose hydraulics with low to medium pressure. If you're dealing with potential shock hazards, you'd want to look at the H277 or H435 hoses instead.
Question by: Wayne P on Sep 13, 2025, 6:15 AM
got a -10 hose on the bench, is this the right dash size fitting for it?
Answer by: Customer Support on Sep 15, 2025, 6:31 AM
It matches a -10 hose dash size and it’s a 1A Series crimp hose fitting assembly with a 61 flange end.
