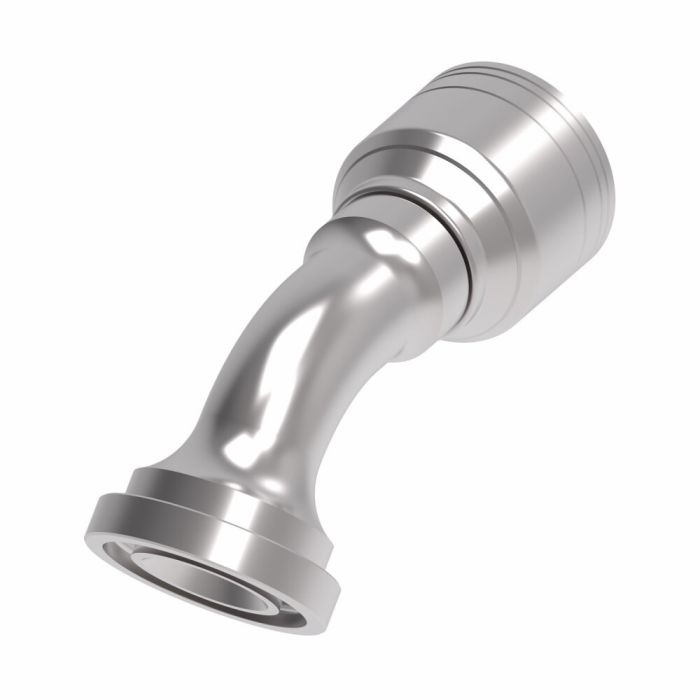

Designed for SAE Code 61 flange connections, this carbon steel fitting from Eaton Aeroquip is a -10 hose dash size, 45-degree elbow assembly built for permanent crimp hose installations. Part of the Aeroquip 1A Series, the Ftng (perm), 61-flange is engineered to maintain reliable hose assembly integrity in demanding hydraulic circuit applications.
Construction includes Dura-Kote plating, which provides strong corrosion resistance suited to harsh operating environments. The flanged end type pairs with a line, hose, or tube end, making it appropriate for connecting hose assemblies to SAE Code 61 flange ports. At 0.01 lb package weight and 1.5 inches product width, this is a compact fitting with a drop dimension of 1.0 inch. Manufactured at the Van Wert, Ohio facility, this fitting is designed as part of a system-engineered approach intended to extend hose assembly service life.
SKU: 1A12FLA10
Supplier Part Number (MPN): 1A12FLA10
|
Alternate Part Numbers
MINO-00015F53182
|
Drop Dimension
1.00
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-10
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
1.50
|
Sub Brand
Aeroquip
|
Supplier Part Number
1A12FLA10
|
Product Weight
0.46 lbs
|
