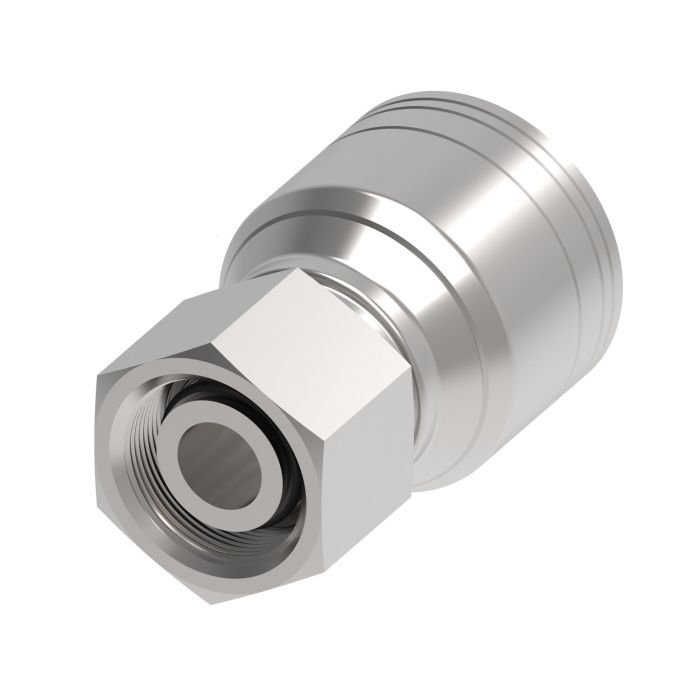

Aeroquip Fitting (Perm) DKOL R2 MM+

Ask A Question

Description & Features

Aeroquip Fitting (Perm) DKOL R2 MM+ for general purpose low and medium pressure hydraulics. It is recommended to use H277 or H435 where shock hazards exist.

This Aeroquip fitting assembly features Dura-Kote plating for superior corrosion resistance and an innovative design to deliver performance and maximum uptime. The system is engineered to extend hose assembly life. It is made of carbon steel and the end type 1 is Metric.

SKU: 1A16DL12

Supplier Part Number (MPN): 1A16DL12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.31 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.13 in
Dimension Standards
SAE J1176
Dimensions
2.31 in L x 1.56 in W x 1.56 in H
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
EC115, EC118,EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
Hex Size
1.26 in
Hose Dash Size
12
Inside Diameter
1.51 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M26x1.5

Product Questions & Answers (1)

Question by: Hugh R on Aug 21, 2025, 5:40 PM
Will this fitting work for hydraulic lines on my tractor? Just need somethin' that can handle the pressure.
Answer by: Customer Support on Aug 23, 2025, 12:50 PM
This Aeroquip fitting is designed for general purpose low and medium pressure hydraulics. If your tractor's hydraulic system falls within that range, it should be suitable.
