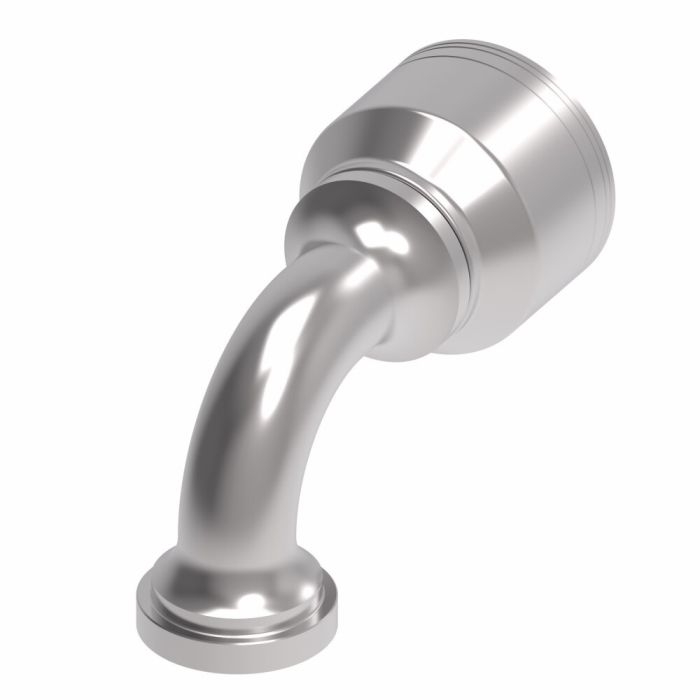

A carbon steel crimp hose fitting designed for SAE Code 61 flange connections, the Aeroquip Fitting Perm 61-Flange is built for demanding hydraulic hose assembly applications. It features a flanged end type on one side and a line/hose/tube end on the other, with a hose dash size of -20 to suit larger-diameter hydraulic hose configurations.
Dura-Kote plating provides corrosion resistance suited to harsh industrial environments. The fitting's design supports extended hose assembly service life and is engineered as part of a system-level approach to maintaining hydraulic circuit integrity and uptime. As part of the Aeroquip 1A Series crimp fitting lineup, it is compatible with the broader Aeroquip crimp system.
SKU: 1A16FLB20
Supplier Part Number (MPN): 1A16FLB20
|
Alternate Part Numbers
MINO-00015X03800
|
Drop Dimension
2.38
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-20
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
2.41
|
Sub Brand
Aeroquip
|
Supplier Part Number
1A16FLB20
|
Product Weight
1.41 lbs
|
