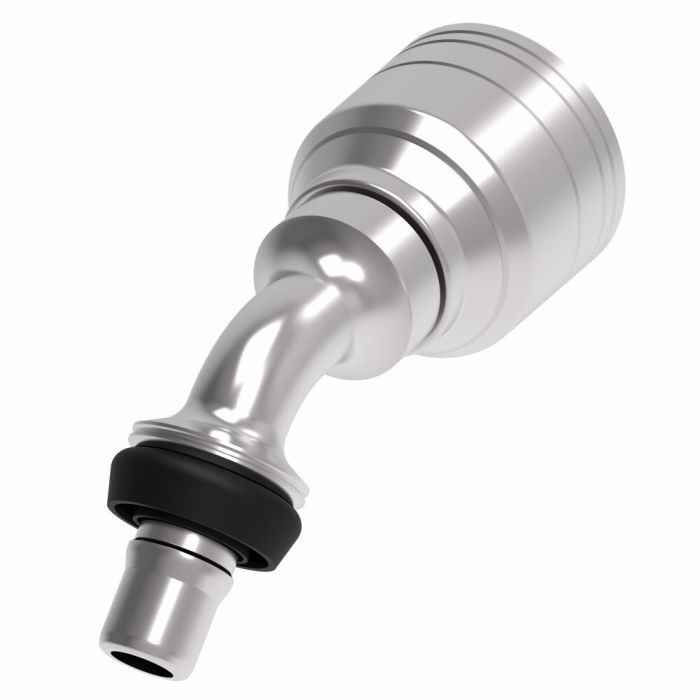

AEROQUIP NIPPLE ASSEMBLY

Ask A Question

Description & Features

Designed for general-purpose low and medium pressure hydraulic applications, the Aeroquip Nipple Assembly excels in environments where shock hazards are a concern, such as when paired with H277 or H435 hoses. Featuring a 45˚ elbow, this fitting assembly is engineered for reliable performance and maximum uptime. The Dura-Kote plating enhances corrosion resistance, ensuring longevity and durability in demanding conditions.

Constructed from high-quality carbon steel, the Aeroquip Nipple Assembly is a versatile choice for various industrial uses. It features a Push to Connect end type and compatibility with lines, hoses, and tubes, making it a flexible option for different system configurations. The hose dash size of -16 ensures a proper fit, while the assembly's compact design, with a product width of 1.94 inches and a drop dimension of 2.0700, facilitates easy integration into existing setups.

SKU: 1A16MCA16

Supplier Part Number (MPN): 1A16MCA16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
5.358 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Hose, Snap
Connection Type 1
Hose
Connection Type 2
Male Snap-to-Connect
Construction Style
Crimp
Cut-Off Factor
4 in
Dimension Standards
SAE J1176
Drop Dimensions
2.067 in
End Size 1
16
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
16
Inside Diameter
0.78 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
1A Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Keith R on Oct 18, 2025, 8:54 AM
What kind of hydraulic applications is this Aeroquip nipple assembly good for?
Answer by: Customer Support on Oct 20, 2025, 6:44 AM
It's designed for general-purpose low and medium pressure hydraulic jobs. Where there's a chance of shock, like with H277 or H435 hoses, this assembly should work well.
