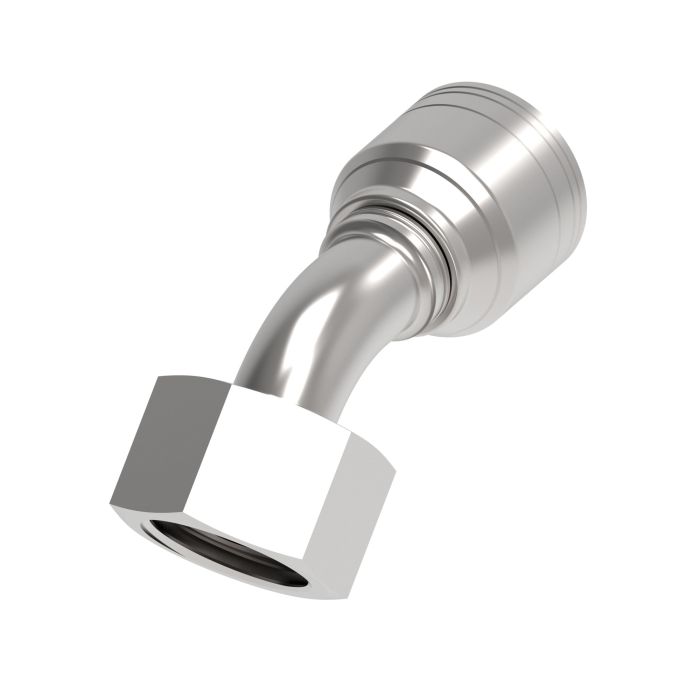

main product photo

Aeroquip Global Metric Fitting

Ask A Question

Description & Features

This Eaton Aeroquip Global Metric Fitting is designed for general-purpose low and medium-pressure hydraulic applications, especially where shock hazards exist.

Featuring Dura-Kote plating, this carbon steel fitting assembly offers superior corrosion resistance. The Aeroquip Global Metric Fitting also provides an innovative design that delivers reliable performance and maximum uptime while extending hose assembly life.

This female fitting features a metric end and a line/hose/tube end.

SKU: 1A20DSA12

Supplier Part Number (MPN): 1A20DSA12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.23 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1-1/4 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS 24 deg Swivel
Construction Style
Crimp
Cut-Off Factor
3.04 in
Dimension Standards
SAE J1176
Dimensions
5.13 in L x 1.81 in W x 2.96 in H
Drop Dimensions
1.28 in
End Connection Torque
125 to 140 lb-ft
End Gender 1
Female
End Size 1
20
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.81 in
Hose Dash Size
12
Inside Diameter
0.61 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M36x2

Product Questions & Answers (1)

Question by: Ronnie R on Apr 28, 2025, 4:53 PM
got a -12 hose in the shop, is this fitting meant to crimp on that size?
Answer by: Customer Support on Apr 30, 2025, 6:59 AM
The key callout is the hose dash size. This one is a -12 crimp hose fitting in the Aeroquip 1A Series, so it matches a -12 hose size.
