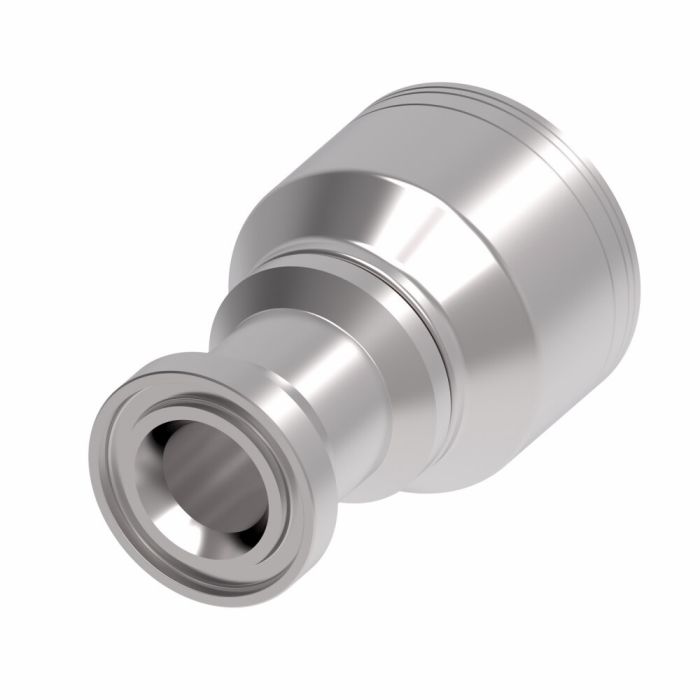

Danfoss / Eaton Fitting (Perm), 61-Flange R2

Ask A Question

Description & Features

The Danfoss / Eaton Fitting (Perm) 61-Flange R2 offers exceptional performance for demanding industrial applications. This fitting part of the 1A Series Crimp Hose Fittings SAE Code 61 is designed with a flanged end and a line/hose/tube interface. Engineered from carbon steel it ensures durability and longevity under rigorous conditions.

Featuring Dura-Kote plating it offers superior corrosion resistance significantly extending the life of hose assemblies. The innovative design enhances performance and maximizes uptime making it a reliable choice for various industry needs. System-engineered specifications ensure optimal compatibility and extended service life.

Supplier Part Number: 1A20FL20

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.07 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
2.51 in
Dimension Standards
SAE J1176
Dimensions
4.24 in L x 2.41 in W x 2.41 in H
End Size 1
20
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
20
Inside Diameter
1.05 in
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (2)

Question by: Phil D on Apr 16, 2025, 7:04 PM
what's the plating on this fitting, and does it hold up decent in wet or dirty environments?
Answer by: Customer Support on Apr 18, 2025, 6:18 AM
Dura-Kote plating is what you get on this one, and it's specifically there to fight corrosion. For hose assemblies running in conditions where moisture or grime is a regular thing, that coating gives the carbon steel body a meaningful layer of protection and helps stretch out the service life of the assembly overall.
Question by: Bonnie R on Sep 15, 2025, 5:32 PM
Will this fitting hold up in a hydraulic system that sees pretty consistent use?
Answer by: Customer Support on Sep 17, 2025, 6:23 AM
Dura-Kote plating provides superior corrosion resistance, significantly extending the life of hose assemblies even under demanding conditions. So, yeah, it should hold up just fine.
