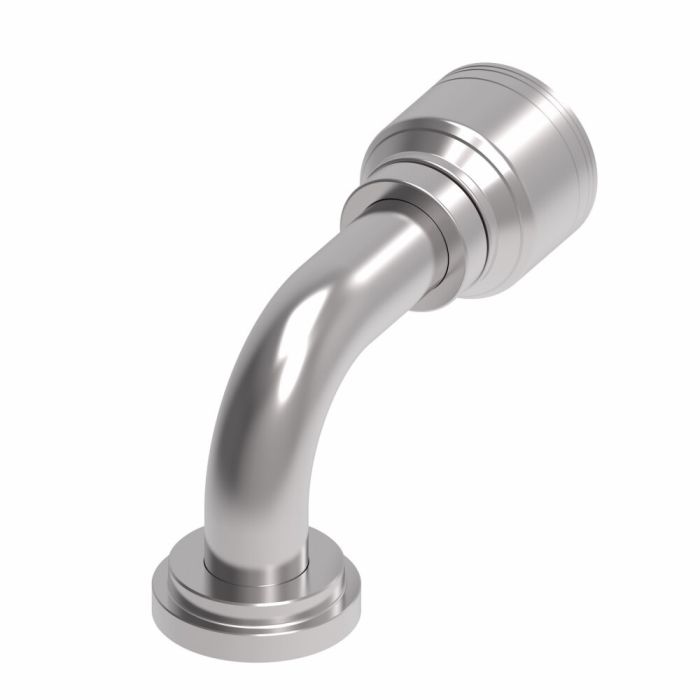

main product photo

FTNG, 61-FLANGE R2

Ask A Question

Description & Features

The FTNG 61-FLANGE R2 by Danfoss Power Solutions provides high performance with its innovative design ensuring maximum uptime. This fitting is specifically engineered for extended hose assembly life making it ideal for demanding industrial needs.

Constructed from durable carbon steel this fitting features Dura-Kote plating that offers superior corrosion resistance. The flanged end type provides robust connection capabilities while the line/hose/tube end guarantees compatibility with various systems.

With a drop dimension of 2.6200 and a product width of 2.41 this fitting is designed to meet precise specifications. The hose dash size is -20 further emphasizing its suitability for industrial applications.

Supplier Part Number: 1A20FLB20

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
5.12 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
3.57 in
Dimension Standards
SAE J1176
Dimensions
6.3 in L x 2.41 in W x 3.82 in H
Drop Dimensions
2.62 in
End Size 1
20
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
20
Inside Diameter
0.926 in
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (2)

Question by: Wade W on Oct 18, 2025, 8:44 AM
what's the material on this fitting and does it have any kind of coating to keep rust off?
Answer by: Customer Support on Oct 19, 2025, 11:57 AM
Carbon steel construction with Dura-Kote plating applied over it. That plating is specifically there to handle corrosion resistance, so it holds up better in environments where bare steel would start to give you trouble over time.
Question by: Hugh W on Dec 21, 2025, 8:52 PM
i’ve got an Aeroquip hose that’s a -20, is this fitting the right dash size for it?
Answer by: Customer Support on Dec 23, 2025, 7:11 PM
Hose dash size on this fitting is -20, so it matches a -20 hose size.
