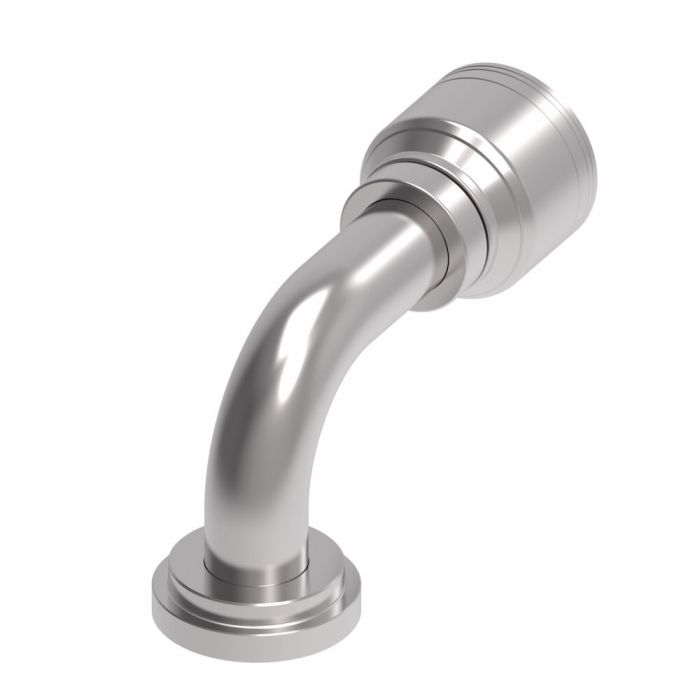

Designed for general purpose low and medium pressure hydraulic applications, the Danfoss / Eaton Aeroquip 1A20FLB24 FTNG (PERM), 61-FLANGE Low Carbon Steel 1.25 IN Compatible Hose ID Flanged fitting is a permanent crimp hose fitting built to SAE Code 61 flange standards. Constructed from low carbon steel, it features a flanged end type on one side and a hose/line connection on the other, with a -24 hose dash size corresponding to a 1.25-inch compatible hose ID.
Dura-Kote plating provides corrosion resistance suited to demanding hydraulic environments. The fitting is engineered to extend hose assembly service life and support maximum system uptime. Where shock hazards are a concern, Eaton Aeroquip recommends using H277 or H435 hose in place of standard assemblies. Fluid compatibility data is available through Eaton's published documentation for reference during specification.
SKU: 1A20FLB24
Supplier Part Number (MPN): 1A20FLB24
|
Alternate Part Numbers
MINO-00015X20622
|
Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
|
Drop Dimension
2.62
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-24
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
2.70
|
Sub Brand
Aeroquip
|
Supplier Part Number
1A20FLB24
|
Product Weight
3.00 lbs
|
