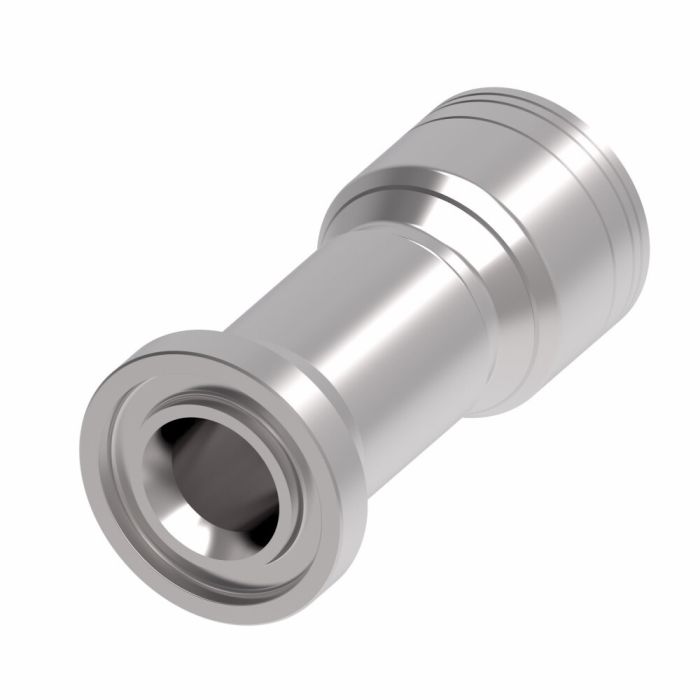

main product photo

Aeroquip Fitting (Perm) 61-Flange R2

Ask A Question

Description & Features

The Aeroquip by Danfoss 1A Series Crimp Hose Fittings SAE Code 61 offer exceptional performance and reliability for demanding industrial applications.

Crafted from high-quality carbon steel these fittings feature Dura-Kote plating for superior corrosion resistance ensuring extended product life and reduced maintenance.

Designed with an innovative structure the fittings deliver consistent performance and maximum uptime making them a dependable choice for various hydraulic and fluid transfer systems.

End Type 1 is flanged and End Type 2 is compatible with hose line or tube connections accommodating versatile installation requirements. The hose dash size of -20 ensures compatibility with a wide range of hose assemblies.

Engineered to enhance the longevity of hose assemblies these fittings present a robust solution for maintaining system integrity under challenging operating conditions.

Notably these fittings are part of the EAR99 classification offering flexibility in global trade and compliance.

Supplier Part Number: 1A24FL20

MPN: 1A24FL20

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.09 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
2.54 in
Dimension Standards
SAE J1176
Dimensions
4.27 in L x 2.41 in W x 2.41 in H
End Size 1
24
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
20
Inside Diameter
1.05 in
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Ricky S on Apr 9, 2025, 12:43 PM
If I'm putting together a new hose assembly, is there anything special about this fitting that'll help it last longer?
Answer by: Customer Support on Apr 10, 2025, 6:40 PM
System engineering on these Aeroquip fittings focuses on extending the life of the whole hose assembly. Using these should give you better longevity overall.
