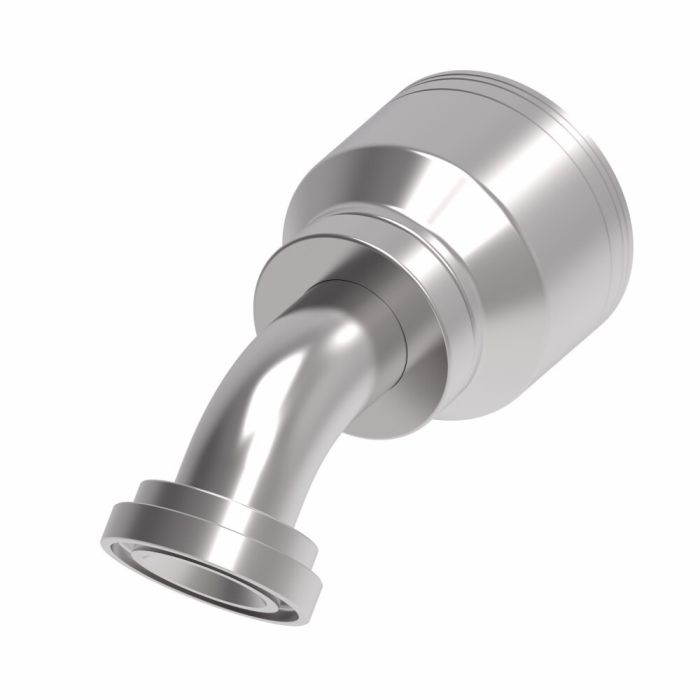

Danfoss / Eaton CD61 R2

Ask A Question

Description & Features

The Danfoss / Eaton CD61 R2 from Danfoss Power Solutions (II LLC Aeroquip) is crafted with a flanged end type and designed to fit hoses lines or tubes efficiently. This product features Dura-Kote plating ensuring long-lasting corrosion resistance making it an excellent choice for demanding environments.

Engineered system-wide to extend hose assembly life the Danfoss / Eaton CD61 R2 incorporates an innovative design that enhances performance and provides maximum uptime. Made from durable carbon steel this product measures 2.41 inches in width with a drop dimension of 1.4100.

Supplier Part Number: 1A24FLA20

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
5.76 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
4.2 in
Dimension Standards
SAE J1176
Dimensions
7.11 in L x 2.41 in W x 3.79 in H
Drop Dimensions
1.41 in
End Size 1
24
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
20
Inside Diameter
1.01 in
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Scott G on Mar 23, 2026, 7:14 AM
Can this Dura-Kote plating handle some pretty rough environments without rusting out on me?
Answer by: Customer Support on Mar 25, 2026, 6:47 AM
Dura-Kote plating gives this fitting assembly enhanced corrosion resistance, so it should hold up well in demanding conditions.
