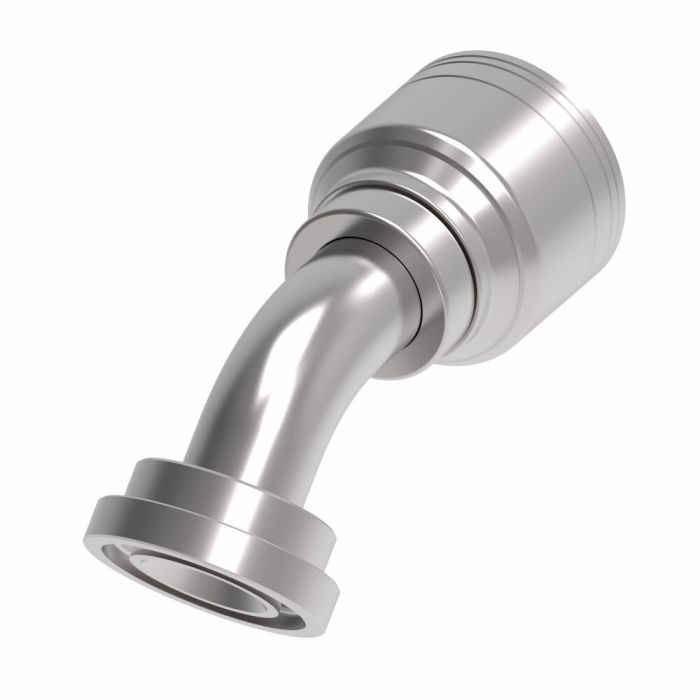

Designed for general purpose low and medium pressure hydraulic circuits, this carbon steel fitting from Eaton Aeroquip delivers reliable performance in a 45-degree elbow flange configuration. The -32 hose dash size pairs a flanged end with a line/hose/tube end, making it well suited for connecting hose assemblies where directional routing is required. For applications where shock hazards are a concern, H277 or H435 series fittings are recommended instead.
As part of the Aeroquip 1A Series crimp hose fitting line, the Ftng (perm), 61-flange conforms to SAE Code 61 flange standards and is constructed from carbon steel with Dura-Kote plating for strong corrosion resistance. The system-engineered design supports extended hose assembly service life and consistent uptime across demanding hydraulic installations.
SKU: 1A24FLA32
Supplier Part Number (MPN): 1A24FLA32
|
Alternate Part Numbers
MINO-00015F53194
|
Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
|
Drop Dimension
1.41
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-32
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
3.22
|
Sub Brand
Aeroquip
|
Supplier Part Number
1A24FLA32
|
Product Weight
2.55 lbs
|
