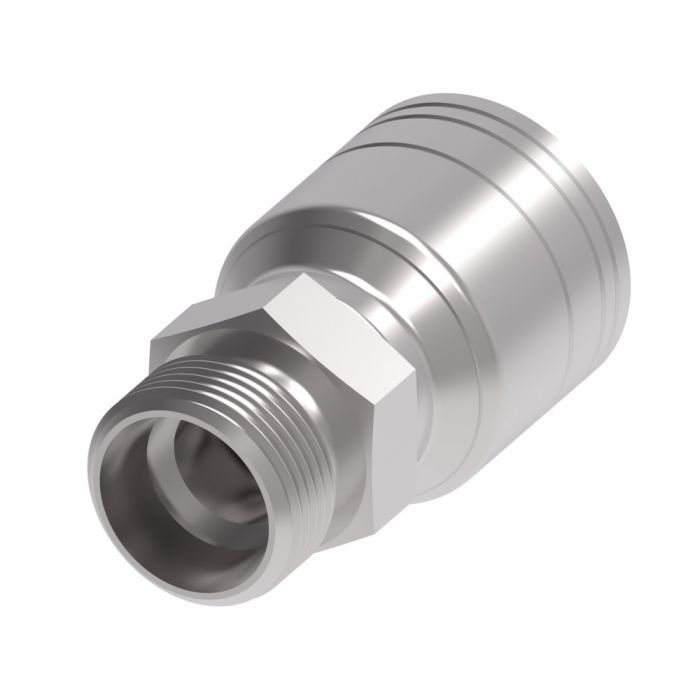

Aeroquip TTC Metric Hose FITT

Ask A Question

Description & Features

The Aeroquip TTC Metric Hose FITT is engineered for general purpose low and medium pressure hydraulics. It incorporates Dura-Kote plating to ensure superior corrosion resistance significantly extending the life cycle of the hose assembly. Leverage this innovative design for performance and maximum uptime.

Manufactured with high-quality carbon steel the component seamlessly integrates with Metric and Line/Hose/Tube end types enhancing reliability in hydraulic applications. The hose fitting is particularly suitable for environments where shock hazards exist recommending the use of H277 or H435 hoses.

This product is system-engineered to withstand rigorous use without requiring calibration or mandrel. Its design eliminates the need for additional adjustments ensuring consistent worry-free performance.

Supplier Part Number: 1A25DK16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.606 in
Compatible Hose ID
1 in
Compatible Tube OD
1.56 in
Connection Size 1
1 in
Connection Size 2
S25
Connection Type
Hose, Male Metric
Connection Type 1
Hose
Connection Type 2
Male DIN Light 24 deg Cone
Construction Style
Crimp
Cut-Off Factor
1-1/4 in
Dimension Standards
SAE J1176
Dimensions
2.6 in L x 1.94 in W x 1.94 in H
End Gender 1
Male
End Size 1
16
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.614 in
Hose Dash Size
16
Inside Diameter
0.81 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M36x2
Tube Outside Diameter 1
1.563 in

Product Questions & Answers (1)

Question by: Ross H on Jun 19, 2025, 2:41 PM
does this fitting work without needing a mandrel or any special tooling to put it together?
Answer by: Customer Support on Jun 21, 2025, 6:10 AM
No mandrel required and no calibration needed either. The 1A25DK16 is system-engineered so it goes together without extra tooling or adjustments. That keeps installation straightforward and cuts down on the prep work before you ever get the assembly into service.
