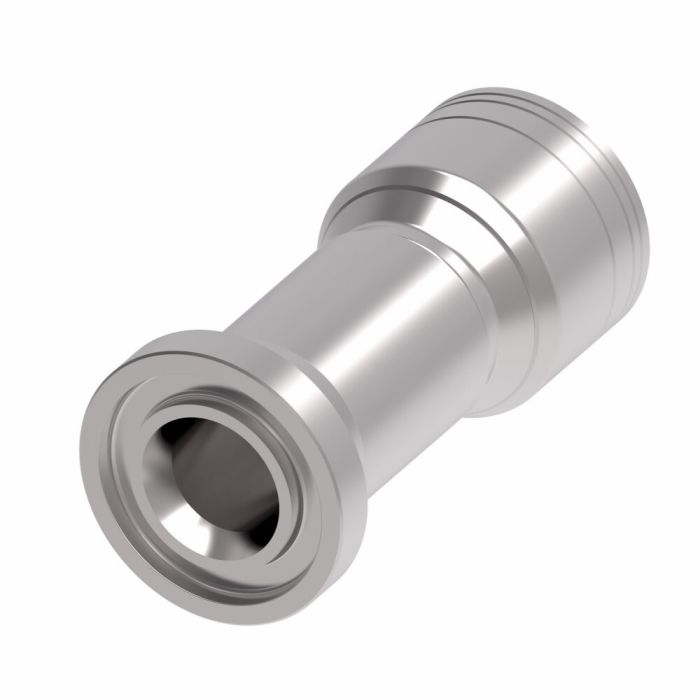

Aeroquip M/M+ 32 SPL FLG STR

Ask A Question

Description & Features

Aeroquip by Danfoss / Eaton 1A Series Crimp Hose Fittings SAE Code 61 offer a robust solution for general-purpose low and medium pressure hydraulics, specifically when shock hazards are present. This product is engineered with Dura-Kote plating, providing superior corrosion resistance to ensure durability.

Innovatively designed to deliver optimum performance and prolonged hose assembly life, these fittings are made of high-quality carbon steel. The end type is flanged on one side with a line/hose/tube connection on the other, making it versatile for various industrial applications.

Featuring a hose dash size of -32 and an end size of 2.81, the Aeroquip M/M+ 32 SPL FLG STR allows for a reliable and efficient connection. This product is an ideal component for enhancing operational longevity and efficiency in hydraulic systems.

Supplier Part Number: 1A32FL24

MPN: 1A32FL24

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.3 in
Compatible Hose ID
1-1/2 in
Compatible Tube OD
2 in
Connection Size 1
1-1/2 in
Connection Size 2
2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
2.583 in
Dimension Standards
SAE J1176
Dimensions
4.4 in L x 2.81 in W x 2.81 in H
End Size 1
2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
24
Inside Diameter
1.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Tube Outside Diameter 1
2 in

Product Questions & Answers (5)

Question by: Peggy S on Dec 14, 2025, 2:27 PM
What kind of hydraulic applications is this fitting good for? I'm not dealing with anything too crazy.
Answer by: Customer Support on Dec 15, 2025, 5:15 PM
It's best suited for general-purpose low and medium-pressure hydraulic systems. If you're dealing with potential shock hazards, you'd be better off with H277 or H435 series hoses.
Question by: Kurt B on Jul 8, 2025, 9:39 AM
got a -32 hose and need a straight flange end, is this the right fitting or am i missin something
Answer by: Customer Support on Jul 10, 2025, 6:36 AM
For a -32 hose setup, this part is a 1A Series crimp hose fitting with a straight SAE Code 61 flanged end. It’s built for general purpose low and medium pressure hydraulic use, and it’s intended to be used as a crimp fitting.
Question by: Randy R on Jul 8, 2025, 7:31 PM
What kind of hydraulic applications does this fitting work best for?
Answer by: Customer Support on Jul 10, 2025, 4:12 PM
This Aeroquip fitting is best suited for general purpose, low to medium pressure hydraulic systems. It’s especially good where you might have shock hazards.
Question by: Shawn C on Mar 25, 2025, 12:37 PM
got a hose setup that takes a -32, is this fitting the right dash size for that
Answer by: Customer Support on Mar 26, 2025, 9:09 PM
For hose sizing, it matches a -32 hose dash size. It is an Aeroquip 1A Series crimp hose fitting with a straight configuration, set up with a flanged end on one side and a line, hose, or tube connection on the other.
Question by: Ross Y on Apr 2, 2025, 8:18 PM
what's the material on these fittings? trying to figure out if they'll hold up in a wet environment without rusting out on me
Answer by: Customer Support on Apr 4, 2025, 6:57 AM
Carbon steel construction with Dura-Kote plating, which is specifically there to fight corrosion. That coating gives you better durability than standard bare steel fittings in conditions where moisture is a factor.
