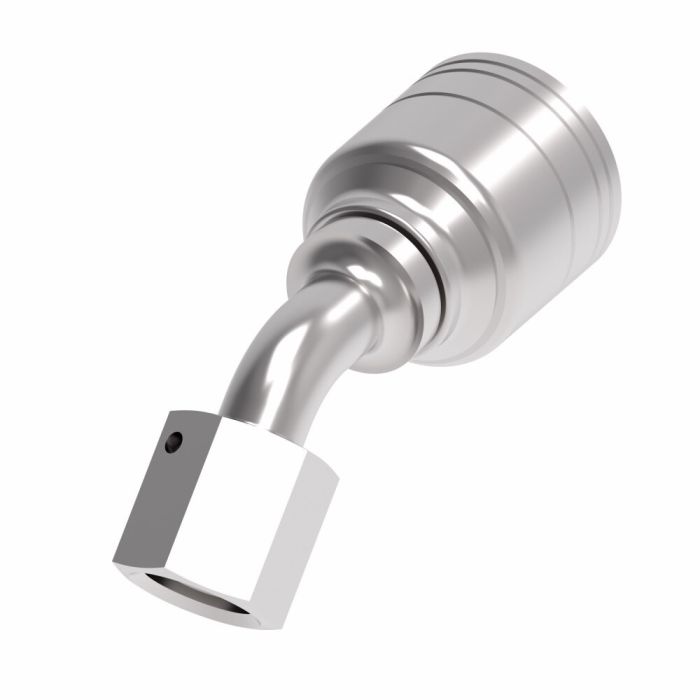

main product photo

AEROQUIP MM FTG

Ask A Question

Description & Features

This AEROQUIP MM FTG is suitable for general purpose low and medium pressure hydraulic applications. For situations where shock hazards exist, use H277 or H435.

Features Dura-Kote plating for corrosion resistance, an innovative design for performance and uptime, and is system engineered to extend hose assembly life. This fitting has a -4 hose dash size, a 0.6000 drop dimension, and a 0.88 product width. End 1 is a female Metric type, and End 2 is for Line/Hose/Tube. The product material is carbon steel.

SKU: 1A5DLA4

Supplier Part Number (MPN): 1A5DLA4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.29 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
5/16 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.37 in
Dimension Standards
SAE J1176
Dimensions
2.56 in L x 0.882 in W x 1.31 in H
Drop Dimensions
0.6 in
End Connection Torque
15 to 16 lb-ft
End Gender 1
Female
End Size 1
05
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
EC115, EC118,EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
Hex Size
0.55 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M12x1.5

Product Questions & Answers (3)

Question by: Brenda S on Jul 24, 2025, 4:38 PM
got a -4 hose line that needs a 45 degree metric swivel end on it, will this fitting work for that setup?
Answer by: Customer Support on Jul 26, 2025, 7:51 AM
For a -4 hose assembly needing a female metric swivel at a 45 degree angle, this is the right part. The 1A5DLA4 is built specifically for that configuration, with a DKO female swivel end and a light duty 45 degree elbow body designed for -4 hose dash size connections. It's a crimp-style fitting, so you'll need the appropriate crimper and die set matched to the hose and fitting series.
Question by: Kurt H on Dec 10, 2025, 2:03 PM
got a tight spot on my line, is this the 45 degree elbow with the metric female swivel end?
Answer by: Customer Support on Dec 11, 2025, 8:29 PM
For tight routing, this fitting is a light duty 45 degree elbow with a DKO female swivel on the metric end. It is part of Eaton Aeroquip 1A Series crimp hose fittings.
Question by: Frank L on May 1, 2025, 4:31 PM
What kind of hydraulics is this fitting good for?
Answer by: Customer Support on May 2, 2025, 9:07 PM
These Aeroquip fittings are intended for general purpose hydraulics with low to medium pressure. They recommend using H277 or H435 hoses in situations where shock hazards might be present.
