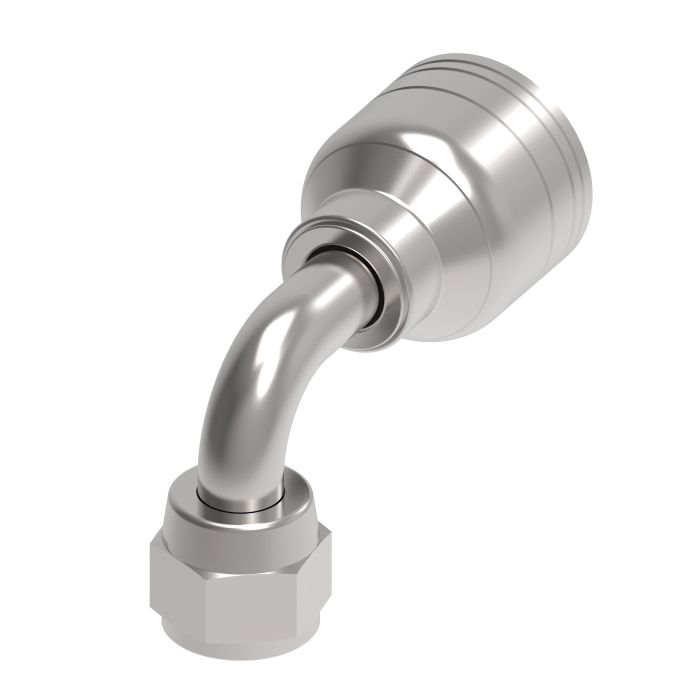

AEROQUIP FITTING SAE 37

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, the Aeroquip Fitting SAE 37 is a female JIC 37-degree swivel 90° elbow crimp hose fitting in Aeroquip's 1A Series. Constructed from carbon steel, it connects a 9/16-inch JIC 37° female swivel end to a -6 dash size hose end, making it well suited for routing hose assemblies where a directional change is required.

Dura-Kote plating provides corrosion resistance across demanding service environments. The fitting is system-engineered to extend hose assembly service life through an innovative design that supports maximum uptime. Where shock hazards are present, Aeroquip recommends using H277 or H435 hose in place of standard assemblies. Fluid compatibility documentation is available through Eaton's published technical resources.

SKU: 1A6FJB6

Supplier Part Number (MPN): 1A6FJB6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.13 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.22 in
Dimension Standards
SAE J1176
Dimensions
2.58 in L x 1.067 in W x 1.75 in H
Drop Dimensions
0.85 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.24 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Kurt T on Mar 1, 2026, 1:58 PM
Can this fitting handle hydraulic fluid in general purpose systems?
Answer by: Customer Support on Mar 2, 2026, 7:19 PM
Yes, it's designed for general purpose low and medium pressure hydraulic applications. For situations where there might be shock hazards, it's best to use H277 or H435 hose instead of standard assemblies.
