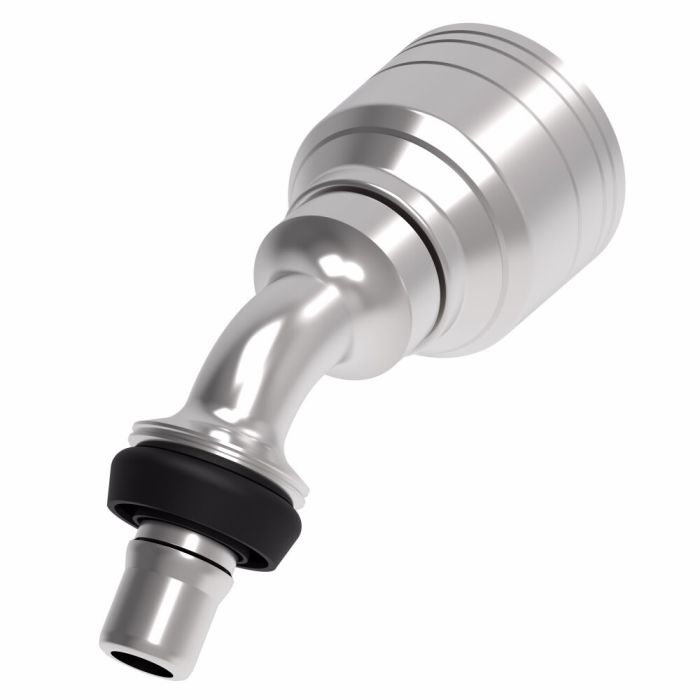

FTG-P DIN2S/SAER2 STC CS

Ask A Question

Description & Features

The FTG-P DIN2S/SAER2 STC CS by Danfoss Power Solutions offers a standard-setting choice for general purpose low and medium pressure hydraulics. This product features an innovative design specifically engineered to deliver optimal performance and ensure maximum uptime.

Constructed from carbon steel this fitting is enhanced with Dura-Kote plating which provides superior corrosion resistance extending the life of the hose assembly significantly. The push-to-connect end type ensures an effortless and secure connection to hoses tubes or lines making it suitable for applications where shock hazards may be present such as with H277 or H435 series hoses.

This component comes with a -6 hose dash size and a product width of 1.07 inches. The drop dimension is 0.8700 inches ensuring compatibility across various system configurations.

MPN: EAR99

Supplier Part Number: 1A6MCA6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.71 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Snap
Connection Type 1
Hose
Connection Type 2
Male Snap-to-Connect
Construction Style
Crimp
Cut-Off Factor
1.87 in
Dimension Standards
SAE J1176
Dimensions
3.08 in L x 1.067 in W x 1.61 in H
Drop Dimensions
0.87 in
End Size 1
06
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
06
Inside Diameter
1/4 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
1A Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Roy A on Sep 9, 2025, 9:53 PM
fitting's got Dura-Kote plating on it -- does that actually hold up in wet or outdoor conditions, or is that more of a light-duty coating?
Answer by: Customer Support on Sep 11, 2025, 7:04 AM
Carbon steel fittings without surface protection tend to rust out pretty fast when moisture gets involved. The Dura-Kote plating on this one is specifically there to fight corrosion, and it's built to extend the life of the whole hose assembly, not just the fitting itself. For general purpose low and medium pressure hydraulic setups where exposure is a concern, that coating makes a real difference in how long the assembly holds up over time.
