main product photo

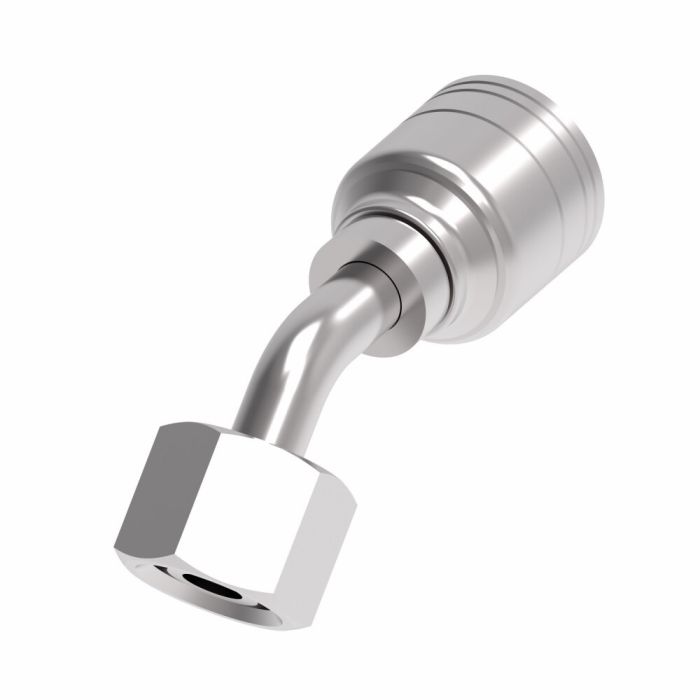

Ftng (perm), DKOL

Ask A Question

Description & Features

This carbon steel permanent fitting, Ftng (perm), DKOL, is suitable for general purpose low and medium pressure hydraulic applications. For applications where shock hazards exist, use H277 or H435 hoses.

Engineered to extend hose assembly life, this fitting features Dura-Kote plating for superior corrosion resistance and an innovative design to deliver performance and maximum uptime. It has a -4 hose dash size, a 0.7200 drop dimension, and a 0.88 product width. This fitting has a female_1 end gender and a metric end type 1, and a line/hose/tube end type 2.

SKU: 1A8DLA4

Supplier Part Number (MPN): 1A8DLA4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.55 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/2 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
1.63 in
Dimension Standards
SAE J1176
Dimensions
2.92 in L x 0.882 in W x 1.53 in H
Drop Dimensions
0.72 in
End Connection Torque
37 to 44 lb-ft
End Gender 1
Female
End Size 1
08
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
EC115, EC118,EC215, FC510, FC849, GH681, GH781 and GH793 Series Hoses
Hex Size
3/4 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
M16x1.5

Product Questions & Answers (1)

Question by: Hank B on Oct 14, 2025, 2:32 PM
got a tight spot on a hose run, is this the kind of fitting thats a 45 elbow with a female metric swivel end
Answer by: Customer Support on Oct 16, 2025, 7:38 AM
For tight routing, this is a light duty 45 degree elbow fitting with a DKO female swivel on the metric end, built as a 1A Series crimp hose fitting.
