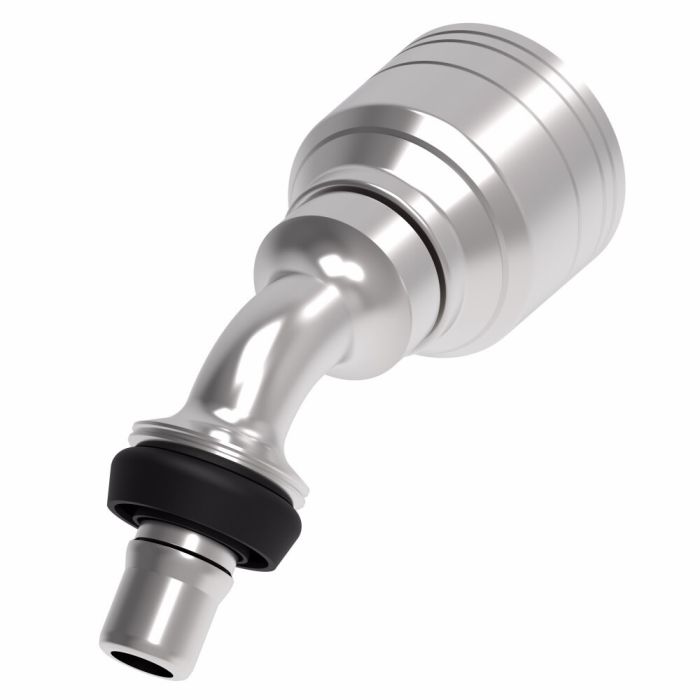

AEROQUIP M/M+ STC

Ask A Question

Description & Features

AEROQUIP M/M+ STC by Danfoss Power Solutions (II LLC Aeroquip) offers a reliable solution for general purpose low and medium pressure hydraulic applications. Featuring Dura-Kote plating this component ensures exceptional corrosion resistance for prolonged durability.

This innovative design is engineered to deliver optimal performance and extend hose assembly life making it a valuable addition where shock hazards exist specifically when used with H277 or H435 hoses.

Constructed from robust carbon steel it features a 45 elbow and a push-to-connect end type. The product width is 1.22 inches with a drop dimension of 1.1700 inches ensuring compatibility and ease of installation in diverse industrial settings.

MPN: 1A8MCA8

Supplier Part Number: 1A8MCA8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.37 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Snap
Connection Type 1
Hose
Connection Type 2
Male Snap-to-Connect
Construction Style
Crimp
Cut-Off Factor
2.37 in
Dimension Standards
SAE J1176
Dimensions
3.78 in L x 1.22 in W x 2.06 in H
Drop Dimensions
1.17 in
End Size 1
1/2 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hose Dash Size
08
Inside Diameter
0.35 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
HNBR
Series
1A Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (3)

Question by: Lyle A on Oct 17, 2025, 11:59 AM
got a -8 hose and need a 45 degree elbow, is this the right kinda fitting for that setup?
Answer by: Customer Support on Oct 19, 2025, 8:17 AM
For a -8 hose assembly, this fitting matches that dash size and it is built as a 45 degree elbow. It is a fitting assembly with a push to connect end on one side, with the other end listed for line, hose, or tube.
Question by: Patty C on Aug 21, 2025, 9:04 AM
got a hose assembly running H435 that sees some rough pressure spikes every now and then -- will this fitting hold up in that kind of situation?
Answer by: Customer Support on Aug 22, 2025, 10:55 AM
For shock-prone applications, pairing this fitting with H435 hose is exactly the right move. That combination is specifically called out for use where shock hazards exist, so you're on the right track. The Dura-Kote plating also helps with corrosion resistance, which matters if the assembly is exposed to moisture or harsh conditions over time. The 45-degree elbow and push-to-connect end make routing a little easier in tight spots too.
Question by: Kent K on Mar 10, 2026, 6:38 AM
Will this fitting hold up in a hydraulic system where it might get bumped or hit sometimes?
Answer by: Customer Support on Mar 11, 2026, 8:06 PM
This AEROQUIP fitting is made from carbon steel and features Dura-Kote plating, so it's designed to withstand corrosion and provide a long service life, even with some exposure to impacts.
