AEROQUIP M/M+

Ask A Question

Description & Features

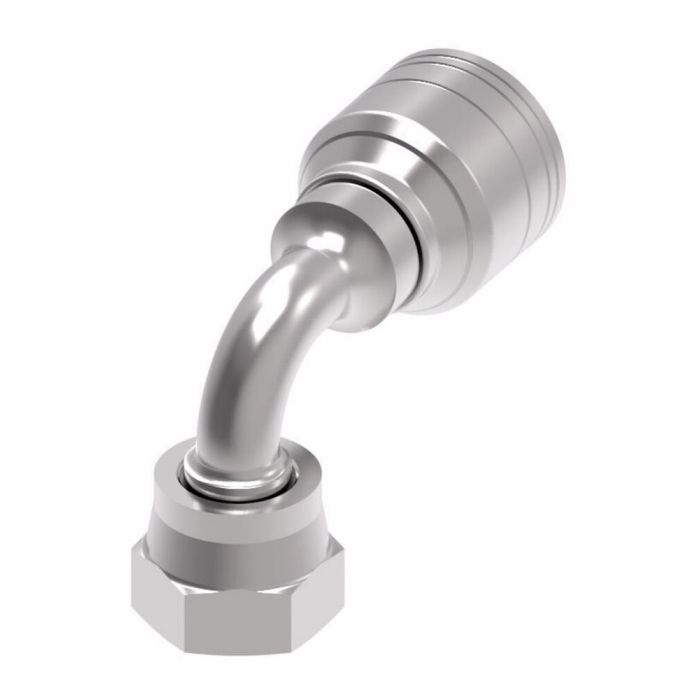

Designed for general purpose low and medium pressure hydraulic systems, this carbon steel fitting features a female ORS swivel end with a 90-degree elbow configuration and a -10 hose dash size. The swivel design simplifies assembly by allowing rotation during installation, reducing stress on the hose line.

The Aeroquip M/M+ is part of Eaton Aeroquip's 1A Series crimp hose fittings, engineered to extend hose assembly service life in demanding industrial hydraulic applications. Dura-Kote plating provides corrosion resistance suited to harsh operating environments. Where shock hazards are present, H277 or H435 series fittings are recommended in place of this product.

SKU: 1AA10FRB10.047

Supplier Part Number (MPN): 1AA10FRB10.047

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.93 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.91 in
Dimension Standards
SAE J1176
Drop Dimensions
1.85 in
End Connection Torque
43 to 48 lb-ft
End Gender 1
Female
End Size 1
1 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
1-1/8 in
Hose Dash Size
10
Inside Diameter
0.45 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-14S
Thread Type
UNS

Product Questions & Answers (3)

Question by: Travis P on Nov 13, 2025, 6:22 PM
Will this fitting work with any standard -10 size hose, or does it need a specific type?
Answer by: Customer Support on Nov 15, 2025, 3:05 PM
This Aeroquip fitting is designed for general purpose, low to medium pressure hydraulic systems, and the -10 hose dash size should be compatible with similarly sized hoses.
Question by: Ray C on Jan 9, 2026, 9:17 AM
trying to swap out an old elbow fitting, is this one a 90 degree female ORS swivel for a -10 hose?
Answer by: Customer Support on Jan 11, 2026, 6:27 AM
It is a 90 degree elbow fitting with a female ORS swivel end and it is built for a -10 hose dash size.
Question by: Kurt H on Nov 5, 2025, 7:32 PM
got a -10 hose line that needs a 90-degree female ORS swivel connection on the end, this fitting gonna work for that?
Answer by: Customer Support on Nov 7, 2025, 7:25 PM
That's what this one's built for. It's a 90-degree elbow with a female ORS swivel end and a -10 hose dash size, so it should drop right into that application. The swivel feature lets it rotate during installation, which takes a good bit of the stress off the hose line and makes getting everything aligned a whole lot easier.
