main product photo

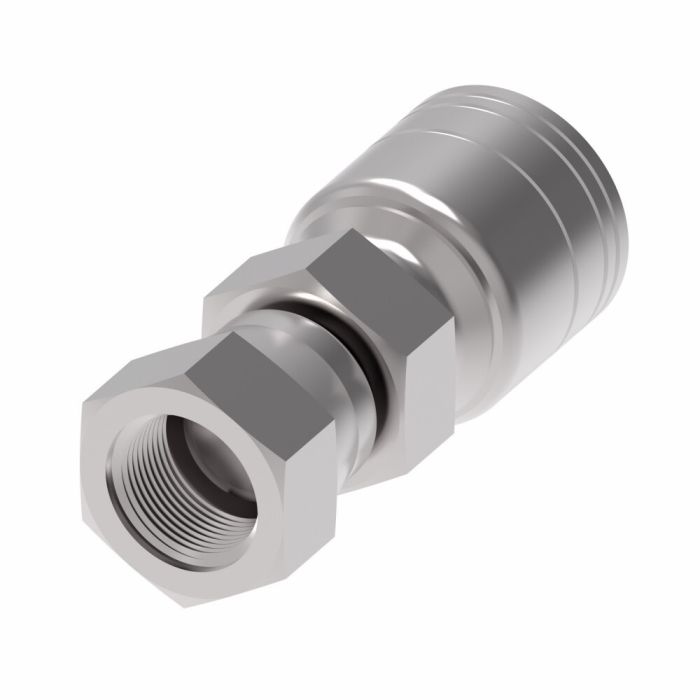

FTNG (PERM), BSPP

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, the Eaton Aeroquip 1A Series Crimp Hose Fittings offer a reliable solution where shock hazards exist. With a female swivel BSPP flat face connection, this fitting is engineered to ensure seamless integration with H277 or H435 hoses. Constructed from durable carbon steel and featuring Dura-Kote plating, it exhibits superior corrosion resistance, making it ideal for harsh environments.

This fitting assembly is part of the Aeroquip brand, known for its innovative design aimed at delivering optimal performance and extending hose assembly life. The fitting boasts a hex size of 1.125 and an end size of 0.75, catering to the precise needs of industrial settings. The product's robust design enhances longevity and maximizes uptime, crucial for demanding hydraulic systems.

SKU: 1AA12BW12

Supplier Part Number (MPN): 1AA12BW12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.8 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female BSP Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female BSPP Swivel
Construction Style
Crimp
Cut-Off Factor
1.74 in
Dimension Standards
SAE J1176
Dimensions
2.8 in L
End Connection Torque
103 to 118 ft-lb
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1-1/4 x 1-1/8 in
Hose Dash Size
12
Inside Diameter
0.61 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
G3/4

Product Questions & Answers (3)

Question by: Gene C on Jan 6, 2026, 2:02 PM
what's the end connection type on this fitting, and is it a permanent crimp style or reusable?
Answer by: Customer Support on Jan 7, 2026, 6:04 PM
Female swivel BSPP flat face on one end, hose/line connection on the other. It's a permanent crimp fitting, so once it's assembled onto the hose, that's it. Not meant to be taken apart and reused. The -12 hose dash size tells you what hose ID it's built for, and the 3/4 inch BSPP thread is what connects to your port or component on the other end.
Question by: Dwayne M on Jun 4, 2025, 9:58 AM
Trying to replace a fitting on a -12 hose, is this the female swivel BSPP flat face style?
Answer by: Customer Support on Jun 5, 2025, 1:39 PM
For a -12 hose setup, this part is a 1A Series crimp hose fitting with a female swivel BSPP flat face end, and it’s built as a fitting assembly meant to go between your hose and the line, hose, or tube side.
Question by: Merle S on Oct 19, 2025, 2:59 PM
Can I use this fitting for hydraulics in a machine that gets a lot of vibration?
Answer by: Customer Support on Oct 20, 2025, 7:29 PM
For applications where shock hazards are a concern, it is recommended to use H277 or H435 hoses with this fitting rather than H277 or H435.
