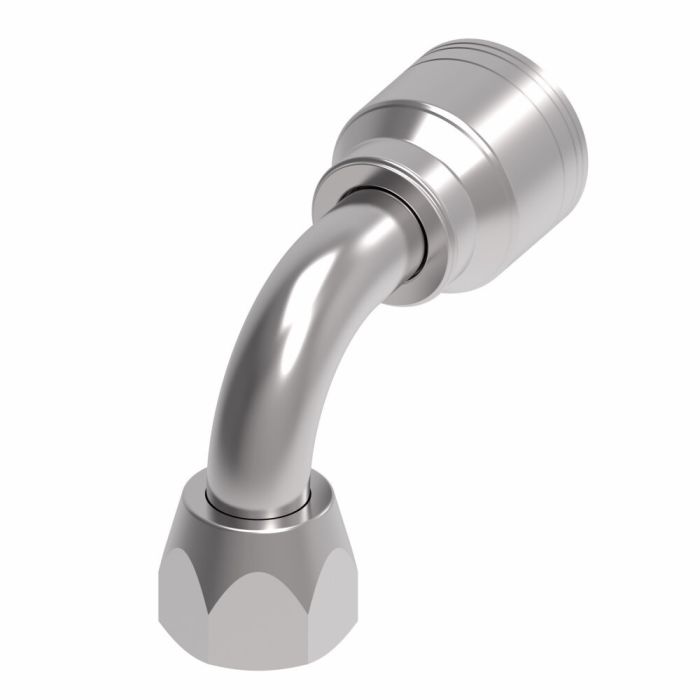

Aeroquip M/M 90 Deg Fitting

Ask A Question

Description & Features

The Aeroquip M/M 90 Deg Fitting by Danfoss Power Solutions offers Dura-Kote plating providing enhanced corrosion resistance. Its innovative design aims to deliver maximum uptime and performance ensuring longevity of hose assemblies.

Crafted from durable carbon steel this fitting is ideal for industrial hose applications. It features a UN end type for the first connection and a line/hose/tube end type for the second connection. With a drop dimension of 1.8200 and a hose dash size of -8 this fitting is engineered to meet demanding industrial requirements.

MPN: EAR99

Supplier Part Number: 1AA12FJB8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.22 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.22 in
Dimension Standards
SAE J1176
Drop Dimensions
1.82 in
End Connection Torque
79 to 87 lb-ft
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
1-1/4
Hose Dash Size
08
Inside Diameter
0.38 in
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (2)

Question by: Hugh G on Dec 16, 2025, 6:27 PM
what's the corrosion protection like on this fitting? we run equipment outdoors and rust has been a real problem with cheaper fittings we've tried before
Answer by: Customer Support on Dec 18, 2025, 8:12 AM
Aeroquip puts a Dura-Kote plating on this one, which is specifically built to hold up against corrosion better than standard finishes. Carbon steel fittings without that kind of coating tend to go south pretty fast in wet or outdoor conditions, so the plating does make a meaningful difference for longevity. It's one of the features the whole system is engineered around, keeping hose assemblies running longer between replacements.
Question by: Brett S on Nov 9, 2025, 5:44 PM
Will this fitting hold up if its constantly being used?
Answer by: Customer Support on Nov 11, 2025, 6:06 AM
Crafted from carbon steel, this Aeroquip fitting is designed for industrial hose applications where durability and longevity are important.
