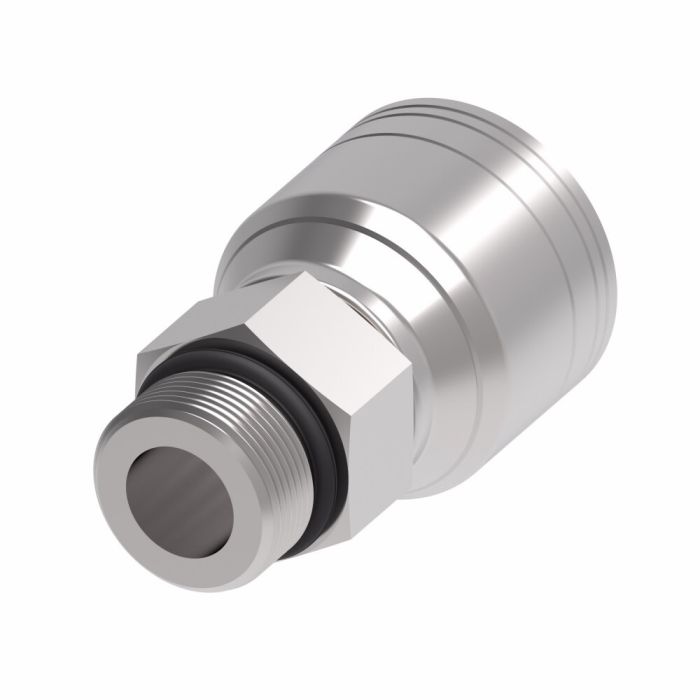

Aeroquip M/M+ 12 M ORB STR TTC

Ask A Question

Description & Features

The Aeroquip M/M+ 12 M ORB STR TTC is engineered for general-purpose low and medium pressure hydraulics. Ideal for applications where shock hazards may exist this product demonstrates exceptional performance and longevity.

Manufactured from carbon steel the fitting incorporates Dura-Kote plating to provide enhanced corrosion resistance. The innovative design contributes to superior performance and maximizes uptime making it highly reliable in demanding environments.

Additionally this fitting is system-engineered to extend the life of hose assemblies. It features a male SAE end and is compatible with H277 or H435 hoses.

Supplier Part Number: 1AA12MB10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.26 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Hose, Male SAE ORB
Connection Type 1
Hose
Connection Type 2
Male SAE ORB
Construction Style
Crimp
Cut-Off Factor
1.23 in
Dimension Standards
SAE J1176
Dimensions
2.26 in L
End Connection Torque
72 to 80 lb-ft
End Gender 1
Male
End Size 1
12
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1-1/4
Hose Dash Size
10
Inside Diameter
1/2 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (3)

Question by: Debbie H on Jul 29, 2025, 11:05 AM
Will this fitting work with a H277 hose?
Answer by: Customer Support on Jul 31, 2025, 6:18 AM
Yes, this fitting is compatible with H277 hoses, as well as H435 hoses.
Question by: Vince F on Aug 11, 2025, 7:36 PM
got a setup that takes a male SAE O-ring boss, is this fitting the straight ORB style or something else
Answer by: Customer Support on Aug 13, 2025, 6:47 AM
For end 1, it is a male SAE connection with an O-ring boss style, and it is a straight fitting. The other end is meant to connect into a line, hose, or tube side of the assembly.
Question by: Norm R on Mar 31, 2025, 8:50 PM
got a setup running H277 hose and been looking for a straight male ORB fitting that'll hold up without rusting out on me, this the right one?
Answer by: Customer Support on Apr 2, 2025, 4:40 PM
For H277 hose, yes, this fitting is a solid match. It's listed as compatible with both H277 and H435 hose, so you're in the right place. The carbon steel body gets a Dura-Kote plating treatment that's specifically there to push back against corrosion, which sounds like exactly what you're after. Straight configuration, male SAE end, hose dash size is -10, so just confirm your hose and port sizes line up and you should be good to go.
