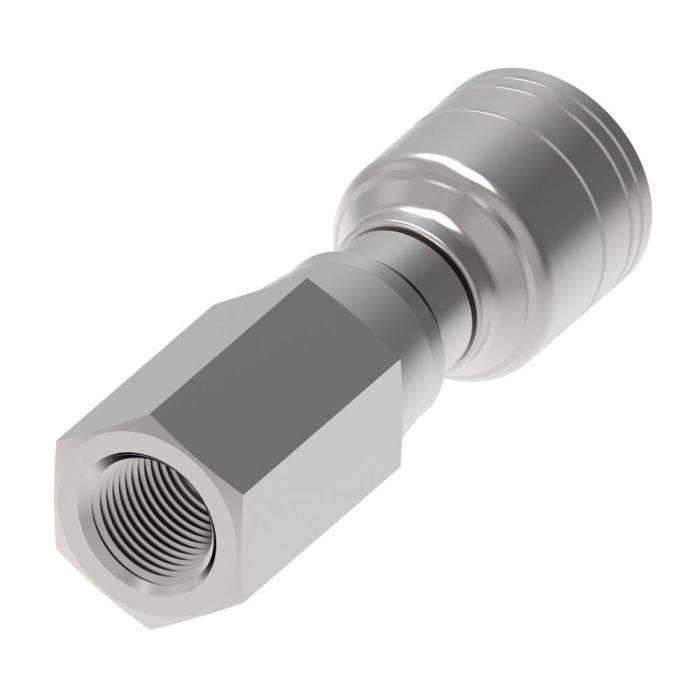

main product photo

Aeroquip FemaleNPT SWIV TTC FTG

Ask A Question

Description & Features

This Aeroquip FemaleNPT SWIV TTC FTG is suitable for general purpose low and medium pressure hydraulic applications. For situations where shock hazards exist, H277 or H435 hose should be used.

This carbon steel fitting assembly features Dura-Kote plating for superior corrosion resistance and an innovative design to deliver performance and maximum uptime, while the system engineered to extend hose assembly life. It has a female NPTF end with a 0.75" end size, and a -12 hose dash size.

SKU: 1AA12PF12

Supplier Part Number (MPN): 1AA12PF12

Alternate Part Numbers: C1GE55, MI-02735234, MINO-00015F51007

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.51 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female Pipe Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female Pipe Swivel Stud
Construction Style
Crimp
Cut-Off Factor
2.44 in
Dimension Standards
SAE J1176
Dimensions
3.63 in L
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1-3/8 in
Hose Dash Size
12
Inside Diameter
0.61 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14
Thread Type
NPTF

Product Questions & Answers (2)

Question by: Jerry M on Jul 28, 2025, 1:24 PM
got a -12 hose and need a female pipe swivel end, is this the right fitting?
Answer by: Customer Support on Jul 30, 2025, 9:10 AM
The key callouts on this one are a -12 hose dash size and a female NPTF pipe swivel end with a 0.75 end size. It is part of Aeroquip’s 1A Series crimp hose fittings, so it’s meant to be used as a crimped hose end in that family.
Question by: Todd W on Sep 1, 2025, 5:08 PM
What kind of hydraulic applications is this fitting good for? I'm dealing with some pretty standard stuff, nothing too crazy.
Answer by: Customer Support on Sep 2, 2025, 6:48 PM
This Aeroquip fitting's best suited for general-purpose hydraulic systems where you've got low to medium pressure. It can also work with H277 or H435 hoses in systems where shock hazards are a concern.
