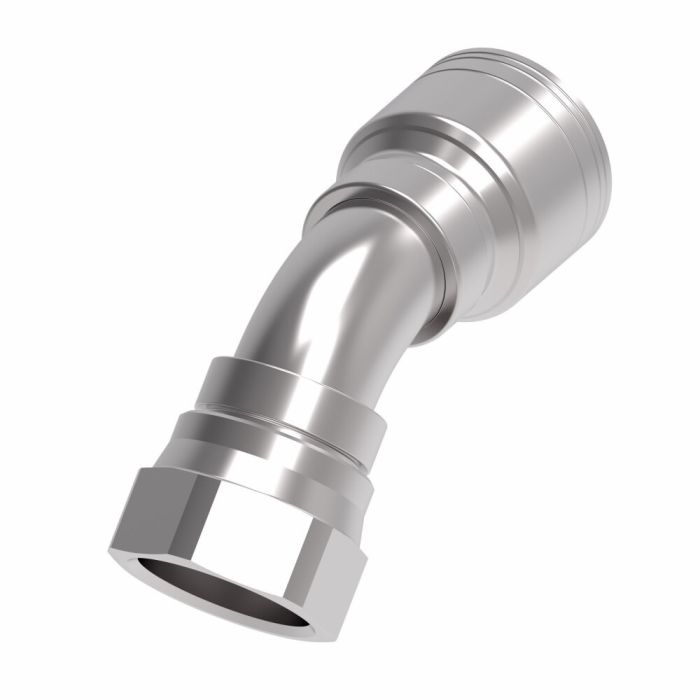

AEROQUIP FITTING

Ask A Question

Description & Features

The Aeroquip Fitting by Danfoss Power Solutions ensures optimal performance in general purpose low and medium pressure hydraulics applications. Engineered to extend hose assembly life the innovative design provides maximum uptime. The fitting is crafted from durable carbon steel and features Dura-Kote plating offering superior corrosion resistance for demanding environments.

Designed for female SAE 37 end type connections the fitting is compatible with H277 or H435 hoses where shock hazards exist. The product width is 1.56 inches with a drop dimension of 1.0600 inches ensuring reliable integration into various hydraulic systems. This component is specifically tailored for industrial usage emphasizing reliability and long service life.

Supplier Part Number: 1AA16FJA12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.43 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.37 in
Dimension Standards
SAE J1176
Dimensions
4.88 in L x 1.56 in W x 3.19 in H
Drop Dimensions
1.06 in
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
1-1/2 in
Hose Dash Size
12
Inside Diameter
0.61 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Product Questions & Answers (3)

Question by: Troy P on Mar 3, 2026, 10:39 AM
Running a medium pressure hydraulic line and need to know if this fitting'll work with the hose I already got on hand, it's an H435. Will this connect up right?
Answer by: Customer Support on Mar 4, 2026, 12:18 PM
H435 hose is one of the two hose types specifically called out as compatible with this fitting, so you're good there. That pairing is actually the recommended setup when shock hazards are present in the application. Just make sure your connection point is a female SAE 37 end type, since that's what this fitting is built for on that side.
Question by: Brent H on Nov 12, 2025, 6:37 PM
What kind of hoses does this fitting work with, specifically if there's a risk of shock?
Answer by: Customer Support on Nov 14, 2025, 11:24 AM
For situations where shock hazards are a concern, this fitting is designed to be used with H277 or H435 hoses.
Question by: Lance F on Jun 15, 2025, 7:12 PM
got a -12 hose setup, does this fitting match up with H277 or H435 when things get to rattlin?
Answer by: Customer Support on Jun 17, 2025, 5:43 PM
For shock hazard situations, it’s meant to be paired with H277 or H435 hoses, and the hose dash size on the fitting is -12.
