AEROQUIP FITTING

Ask A Question

Description & Features

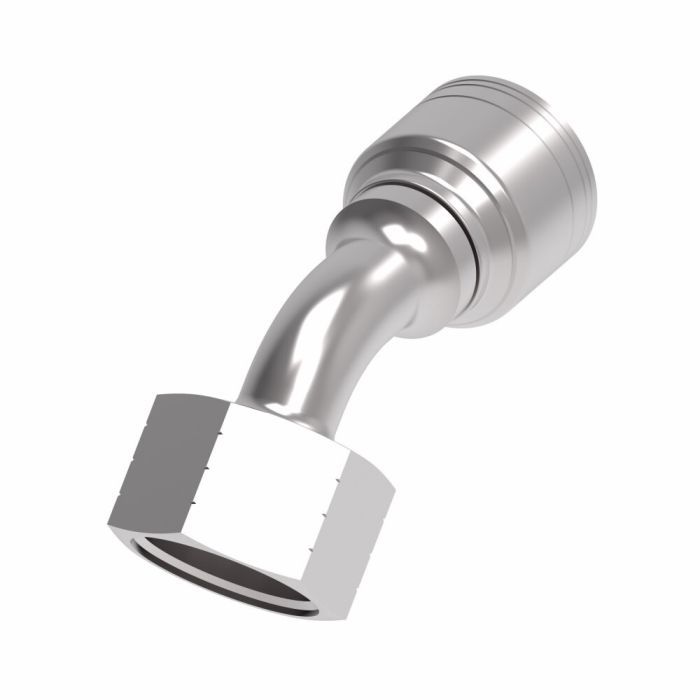

The Aeroquip fitting features Dura-Kote plating ensuring superior corrosion resistance. Designed by Danfoss Power Solutions this fitting provides optimal performance and extended hose assembly life. It is system engineered for general purpose low and medium pressure hydraulics ideal for applications requiring H277 or H435 where shock hazards exist.

This product includes innovative design elements to ensure maximum uptime. The fitting is crafted from high-quality carbon steel and has a product width of 1.63 inches. It incorporates a female ORS end type and is compatible with line/hose/tube connections.

MPN: 1AA16FRA12

Supplier Part Number: 1AA16FRA12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.62 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
2.55 in
Dimension Standards
SAE J1176
Dimensions
5.13 in L x 1.63 in W x 3.11 in H
Drop Dimensions
0.94 in
End Connection Torque
92 to 100 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
1-5/8
Hose Dash Size
12
Inside Diameter
0.55 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-7/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Phil M on Jun 28, 2025, 2:21 PM
fitting says it's for low and medium pressure hydraulics, does that mean it won't hold up if there's any shock in the line?
Answer by: Customer Support on Jun 30, 2025, 6:59 AM
For lines where shock is a real concern, Eaton Aeroquip recommends pairing this with H277 or H435 hose rather than using this fitting on its own in a shock-heavy setup. The fitting itself is built from carbon steel with Dura-Kote plating for corrosion resistance and is engineered to extend hose assembly life, but the shock guidance is about hose selection, not the fitting's construction quality.
