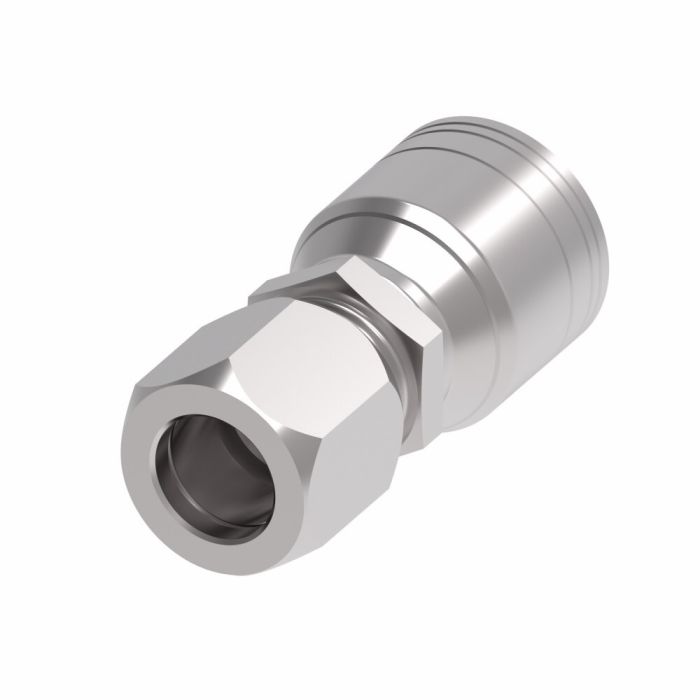

Aeroquip Fitting (Perm) ERMETO 7000 R2 MM+

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, the Aeroquip Fitting (Perm) ERMETO 7000 R2 MM+ is a carbon steel crimp hose fitting with a female UN end on one side and a line/hose/tube connection on the other, sized for -16 hose dash with a 1.38 hex on the tube end. Where shock hazards are present, Eaton recommends pairing with H277 or H435 hose assemblies.

Part of Aeroquip's 1A Series, this fitting is finished with Dura-Kote plating for corrosion resistance and is system-engineered to support extended hose assembly service life. Manufactured at Eaton's Van Wert, Ohio facility, it carries a package weight of 1.89 lb and a product width of 1.94 inches.

SKU: 1AA16MT16

Supplier Part Number (MPN): 1AA16MT16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.8 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female Flareless Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Flareless Tube Ermeto
Construction Style
Crimp
Cut-Off Factor
1.48 in
Dimension Standards
SAE J1176
Dimensions
2.8 in L
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1-3/8 in
Hose Dash Size
16
Inside Diameter
0.81 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Frank G on Jul 21, 2025, 8:42 AM
I'm just tryin' to make sure this fitting will work with my existing setup. It's got a female UN end, but will it play nice with my other lines?
Answer by: Customer Support on Jul 23, 2025, 6:42 AM
This fitting's designed for general purpose low and medium pressure hydraulic systems. The female UN end should give you a pretty standard connection point, and the other end is made for a line/hose/tube connection. Just double check your hose dash size is -16 to be sure.
