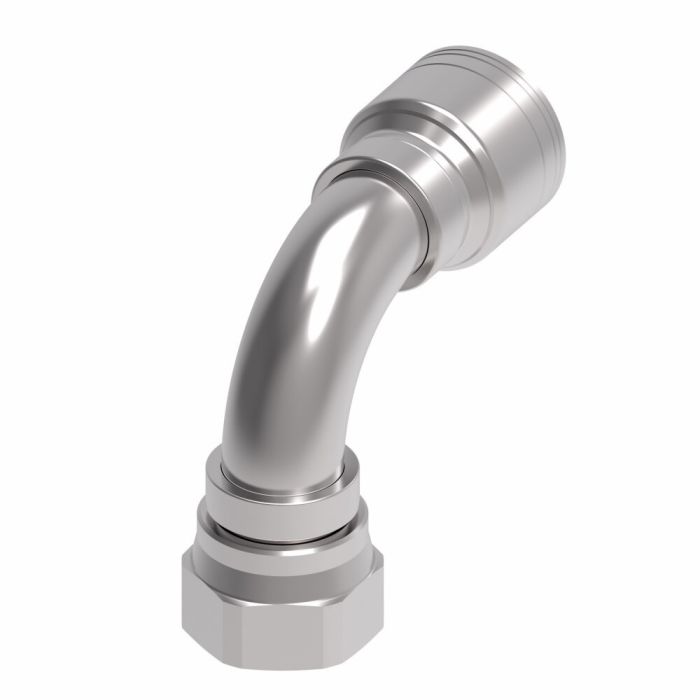

Designed for general purpose low and medium pressure hydraulic applications, this carbon steel crimp hose fitting features a female JIC 37-degree swivel with a 90-degree elbow configuration and accommodates a -16 hose dash size. The swivel end allows for rotational adjustment during assembly, reducing strain on connected hose lines. Where shock hazards are a concern, Aeroquip recommends pairing with H277 or H435 hose.
The AEROQUIP M/M+ R2 is finished with Dura-Kote plating, providing strong corrosion resistance suited to demanding service environments. An engineered system design supports extended hose assembly life and reliable uptime across hydraulic circuit applications. With a drop dimension of 2.75 inches and a package weight of 2.45 lb, this fitting assembly is built for integration into medium-duty hydraulic systems where consistent, leak-free performance is required.
SKU: 1AA20FJB16
Supplier Part Number (MPN): 1AA20FJB16
|
Alternate Part Numbers
MINO-00015X03922
|
Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
|
Drop Dimension
2.75
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
JIC
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-16
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
2
|
Sub Brand
Aeroquip
|
Supplier Part Number
1AA20FJB16
|
Product Weight
1.45 lbs
|
