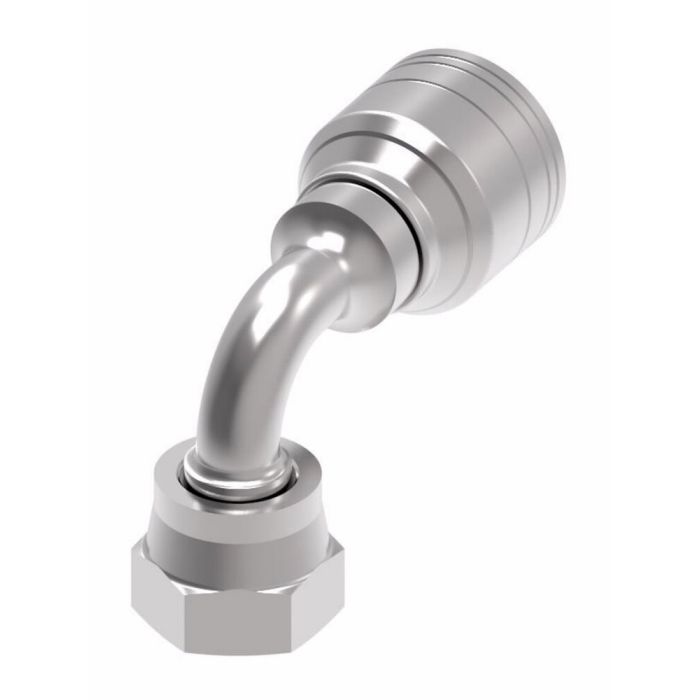

main product photo

AEROQUIP M/M+

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic systems, this carbon steel fitting features a female ORS swivel end with a 90-degree elbow configuration in a -16 hose dash size. The swivel design simplifies installation and routing in tight or angled line runs where a fixed fitting would be impractical.

The Aeroquip M/M+ is built with Dura-Kote plating, providing strong resistance to corrosion in demanding service environments. As part of Aeroquip's system-engineered 1A Series crimp hose fitting line, it is designed to work in concert with compatible hose and crimp tooling to support extended hose assembly service life. For applications where shock hazards are a concern, Aeroquip H277 or H435 hose is recommended. Manufactured in Van Wert, OH, this fitting weighs approximately 2.52 lb with a product width of 1.94 inches.

SKU: 1AA20FRB16.078

Supplier Part Number (MPN): 1AA20FRB16.078

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
5.56 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
4.24 in
Dimension Standards
SAE J1176
Drop Dimensions
3.06 in
End Connection Torque
125 to 140 lb-ft
End Gender 1
Female
End Size 1
20
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
1-7/8 in
Hose Dash Size
16
Inside Diameter
0.81 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-11/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Steve G on Dec 7, 2025, 12:12 PM
Will this fitting hold up if I'm running hydraulics pretty much all day, every day?
Answer by: Customer Support on Dec 9, 2025, 10:27 AM
For general purpose low to medium pressure hydraulic systems, this fitting assembly is designed to hold up well. Aeroquip also recommends H277 or H435 hose if you're dealing with any shock hazards, which can happen in continuous use applications.
