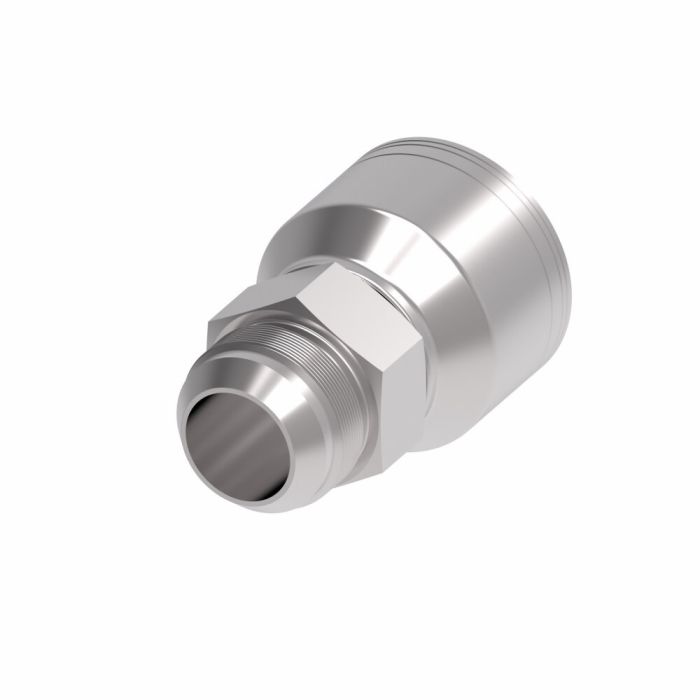

DANFOSS / EATON #20 MJIC X #20 HOSE

Ask A Question

Description & Features

The DANFOSS / EATON #20 MJIC X #20 HOSE is designed for general purpose low and medium pressure hydraulics offering reliable performance for various applications. With its Dura-Kote plating this hose fitting provides exceptional corrosion resistance ensuring longevity and durability.

Engineered by Danfoss Power Solutions (II LLC Aeroquip) the innovative design of the hose fitting extends the hose assembly life and maximizes uptime. The product features Male JIC ends suitable for use with H277 or H435 hoses especially where shock hazards are present.

Made from high-quality carbon steel this hose fitting is built for strength and resilience. The product width is 2.41 inches and it does not require a mandrel or thread sealant to function.

Supplier Part Number: 1AA20MJ20

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.71 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Hose, Male JIC
Connection Type 1
Hose
Connection Type 2
Male SAE 37 deg JIC
Construction Style
Crimp
Cut-Off Factor
2.16 in
Dimension Standards
SAE J1176
Dimensions
3.89 in L x 2.41 in W x 2.41 in H
End Connection Torque
127 to 133 lb-ft
End Gender 1
Male
End Size 1
20
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1.771 in
Hose Dash Size
20
Inside Diameter
1.05 in
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/8-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Brent R on Apr 5, 2026, 5:29 PM
got a -20 hose setup here, does this fitting go straight from a #20 MJIC male end into a #20 hose?
Answer by: Customer Support on Apr 7, 2026, 5:20 PM
For hooking a -20 hose up to a male JIC connection, this fitting is a straight #20 MJIC male end to a #20 hose end, listed as a fitting assembly with hose dash size -20.
